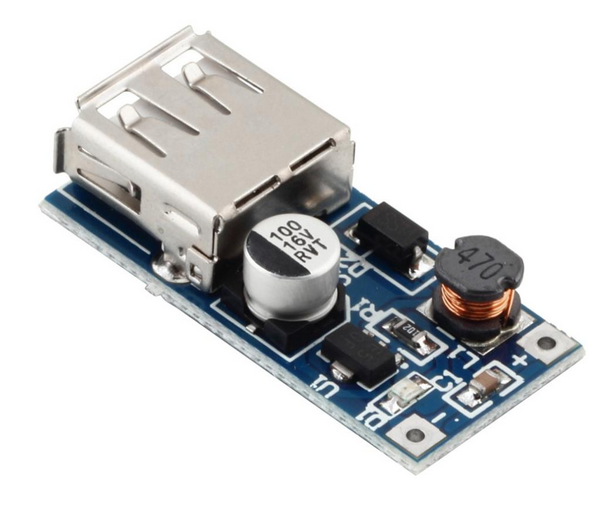

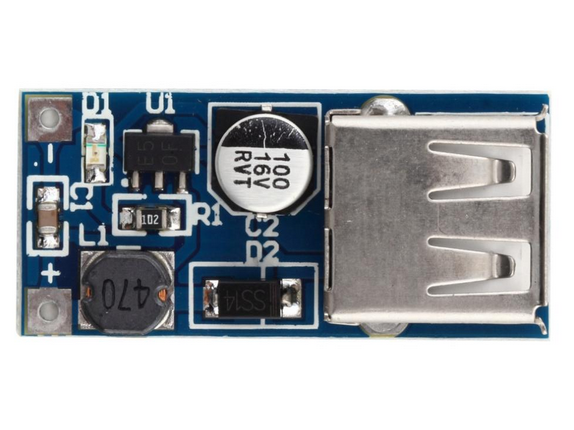

0.9V-5V input, 5V USB Output Boost Regulator Module

Description

Fixed 5V Output Boost Regulator (step-up regulator) Module with standard USB Connector. Accepts Input voltage from 0.9V to upto 5V.

Features

• On-board CE8301 Chip

• Input voltage: 0.9V-5V DC

• PFM Control DC-DC Converter

• Transfer efficiency: 96%(max)

• With USB port

• With working indicator light

• with one AA battery power supply output current can be up to 200~300mA,

• two AA batteries to the output current of 500~600mA

• On board LED indicator that indicates if Load is connected.


Specifications

• Size:34 x 15 x 7mm

• Net weight:4g

Applications

• Single Cell Battery Operated Devices

• Single Cell (AA, AAA size) Phone Battery Charger

• Small size Solar Chargers for Cell phones

• Hand held electronics that operates on small re-chargeable or non re-chargeable batteries.

Package Includes

• 1x 0.9V-5V to 5V DC-DC Booster Module USB Step-up Power Supply Module

document

• CE8301 Datasheet & Schematic
