320x240 2.8" TFT Touch screen Display Monitor for Raspberry Pi

Description

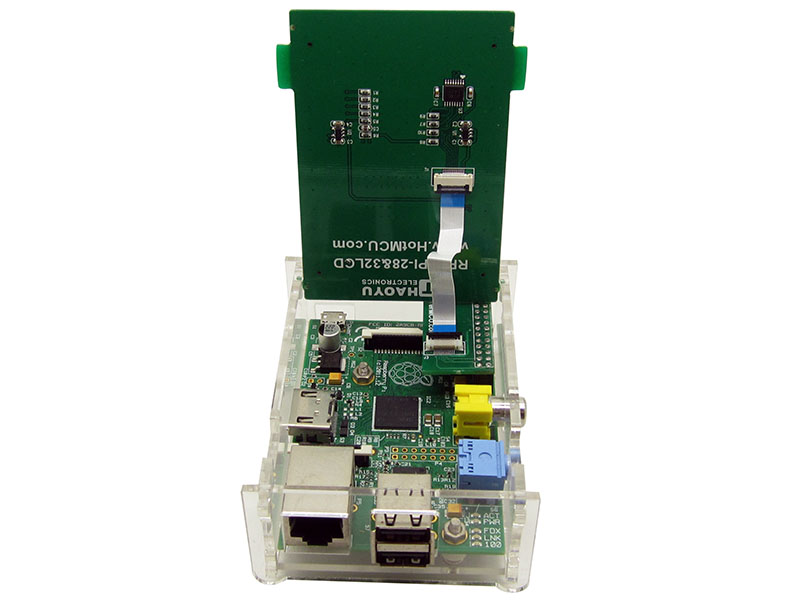

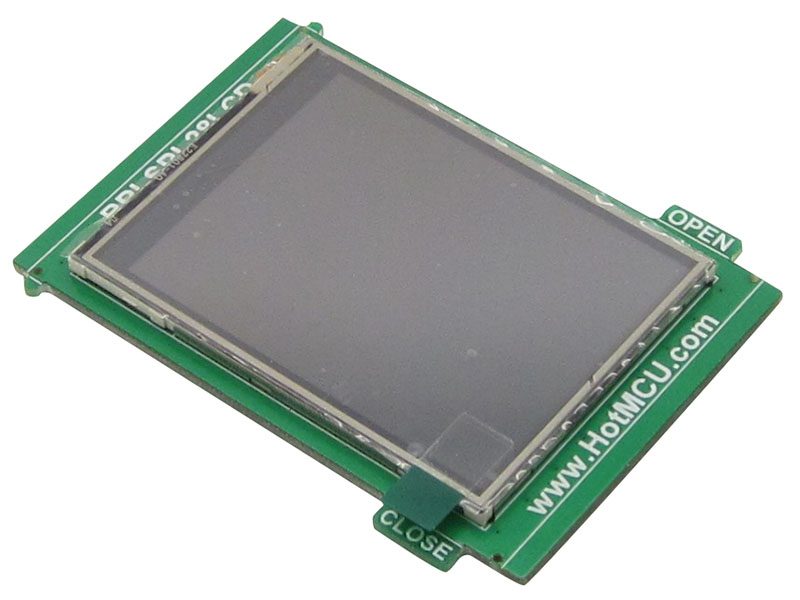

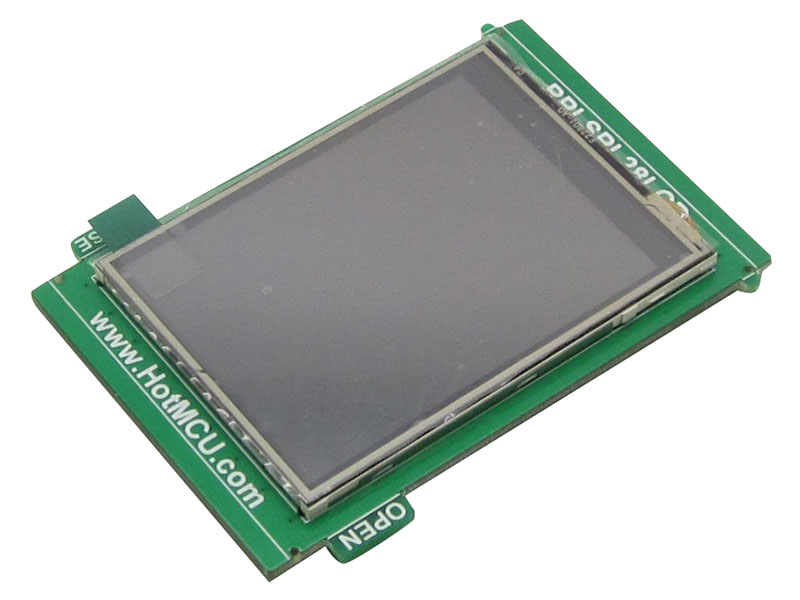

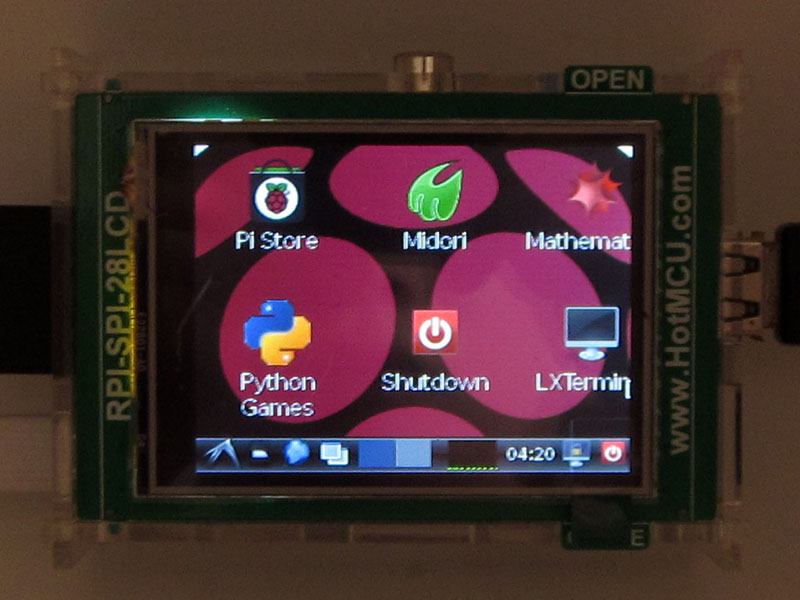

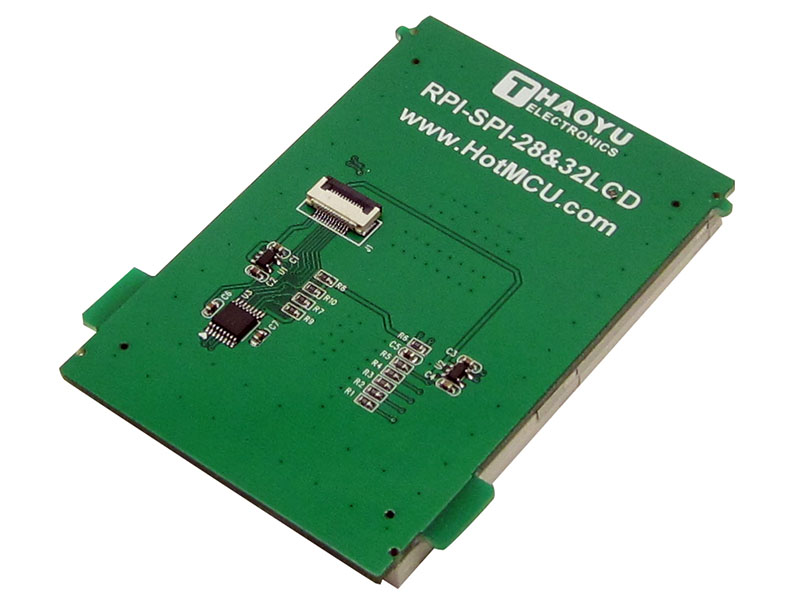

It is a 2.8" display with 320x240 16-bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all, it is use FPC cable connect with Raspberry Pi.

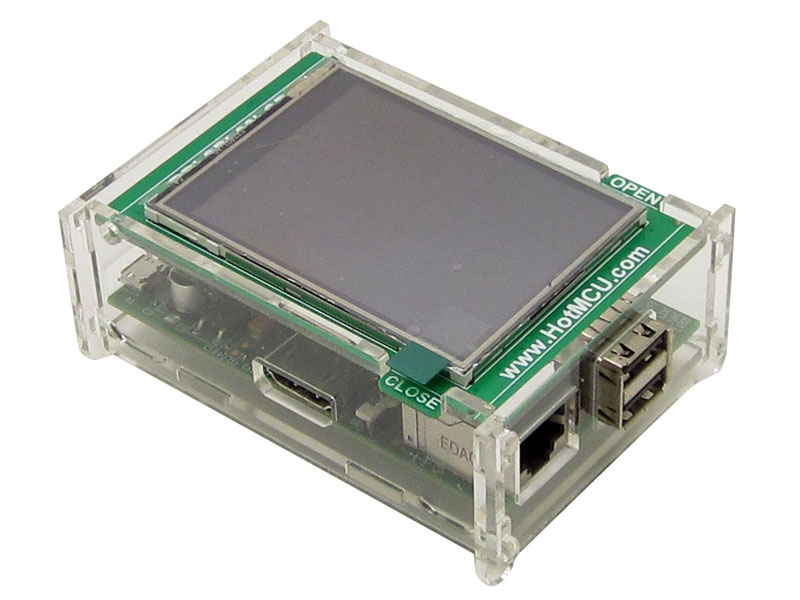

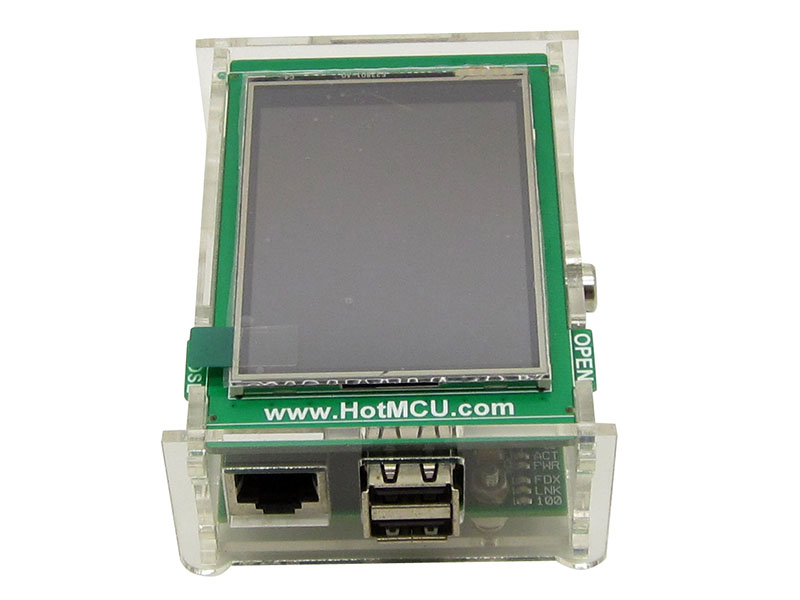

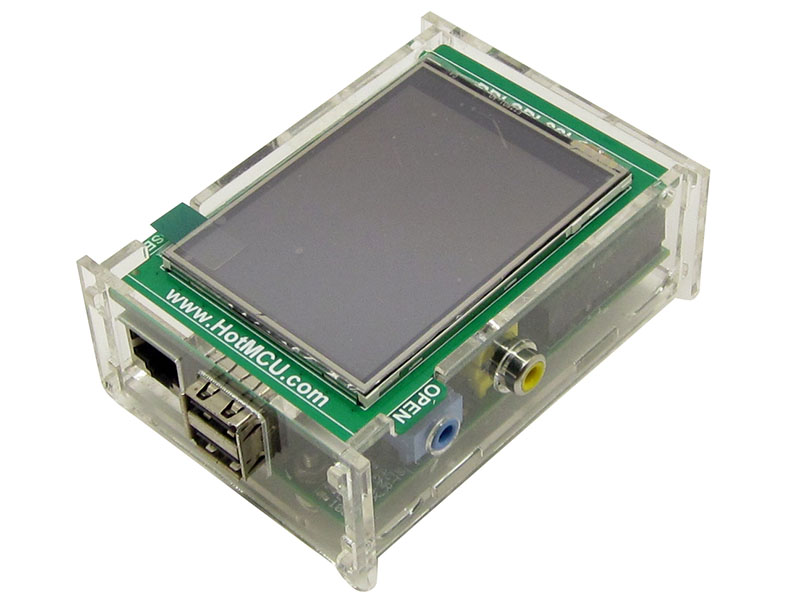

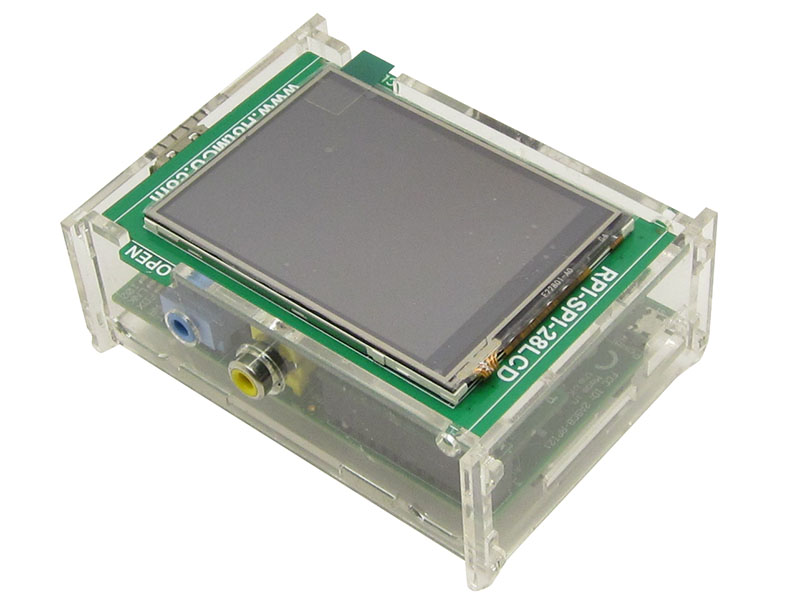

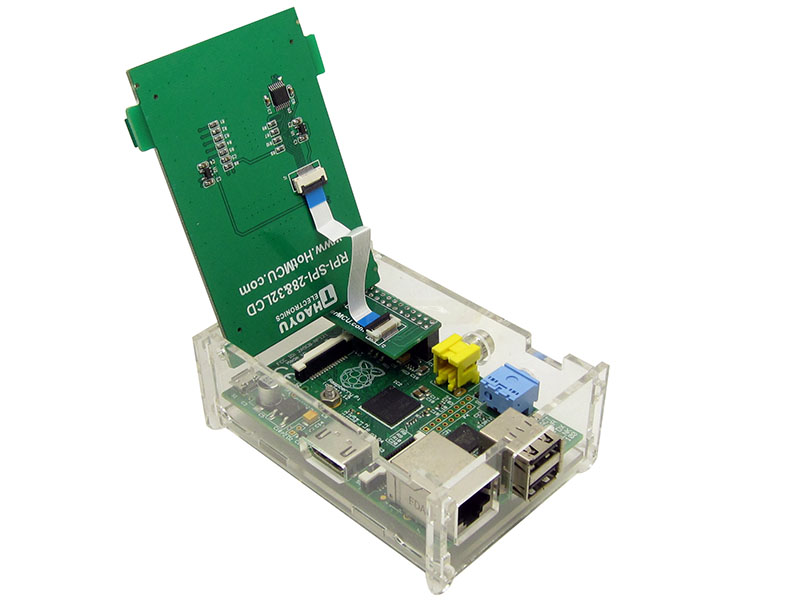

It's designed to fit nicely onto the Pi Model A or B but also works perfectly fine with the Model B+.

Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #17, software and hardware is compatible HY28B.

Package content

• 320x240 2.8" TFT
• 8cm 12pin FPC cable
• 25cm 12pin FPC cable
• 12pin FPC to 2x13 male header expansion board

Document

• WIki Page for Raspberry PI

• ILI9325 datasheet.pdf

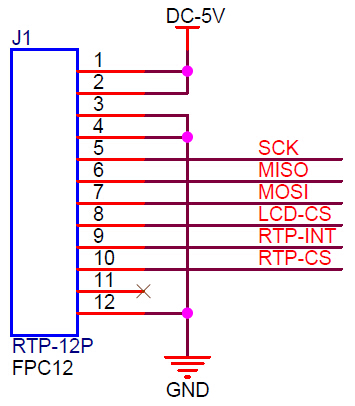

• 12pin FPC Pin Definitions
