7" inch 800x480 TFT LCD Display with capacitive touch panel

Product 40/40

7" inch 800x480 TFT LCD Display with capacitive touch panel

larger image

US $35.00

Model: HY070CTP
Shipping Weight: 305g
54 Units in Stock

Description

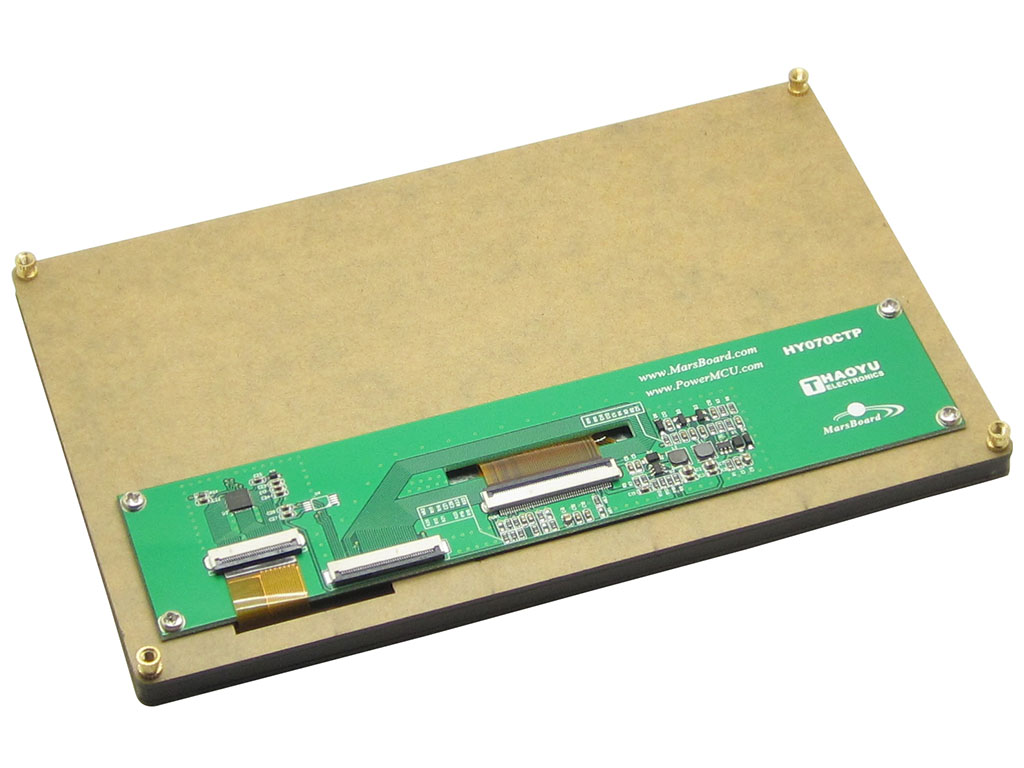

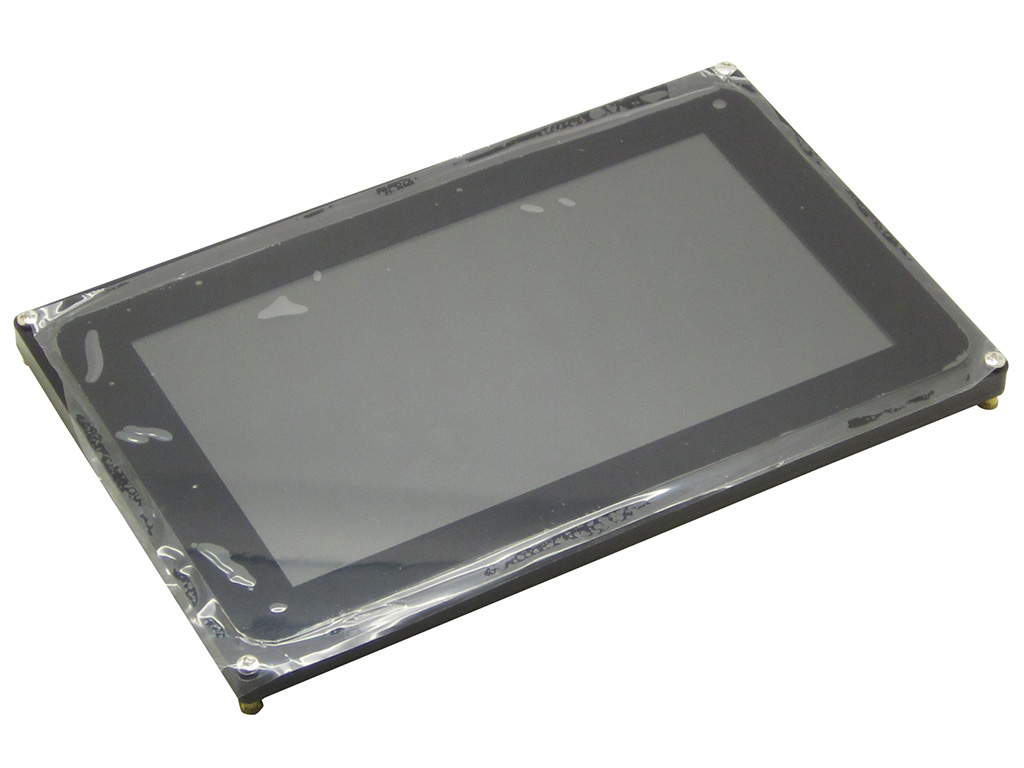

The HY070CTP 7 inch LCD Module is designed to work with HAOYU Electronics's ARM development boards and MarsBoard's single board computers. It has one 7 inch TFT LCD including capacitive touch screen with 800 by 480 pixels resolution.

Features

LCD size	7 inch(Diagonal)
Touch Screen Controller	FT5206
LCD Type	TFT
Resolution	800 × 3 (RGB) × 480
Backlight	LED
Interface type	RGB
Active area	154.08 x 85.92 mm

RGB Pin Assignment

PIN NO	Symbol	I/O	Function
40	BLVDD	Power	Backlight power supply connect 5V
39	BLVDD	Power	Backlight power supply connect 5V
38	GND	Power	Power ground
37	VDD	Power	Power supply voltage connect 3.3V
36	R0	Input	Red data (LSB)
35	R1	Input	Red data
34	R2	Input	Red data
33	R3	Input	Red data
32	R4	Input	Red data
31	R5	Input	Red data
30	R6	Input	Red data
29	R7	Input	Red data (MSB)
28	G0	Input	Green data (LSB)
27	G1	Input	Green data
26	G2	Input	Green data
25	G3	Input	Green data
24	G4	Input	Green data
23	G5	Input	Green data
22	G6	Input	Green data
21	G7	Input	Green data (MSB)
20	B0	Input	Blue data (LSB)
19	B1	Input	Blue data
18	B2	Input	Blue data
17	B3	Input	Blue data
16	B4	Input	Blue data
15	B5	Input	Blue data
14	B6	Input	Blue data
13	B7	Input	Blue data (MSB)
12	GND	Power	Power ground
11	PCLK	Input	Pixel clock
10	LCD-BL-EN	Input	LCD backlight on/off, On=1; Off = 0;
9	HSYNC	Input	Horizontal Sync Signal
8	VSYNC	Input	Vertical Sync Signal
7	DE	Input	Data Enable
6	LCD-BL-ADJ	Input	LCD backlight Control (PWM control)
5	GND	Power	Power ground
4	CTP-SDA	Input/Output	CTP I2C SDA
3	CTP-SCL	Input	CTP I2C SCL
2	CTP-RST	Input	CTP Reset input
1	CTP-INT	Output	CTP Interrupt output
