Description

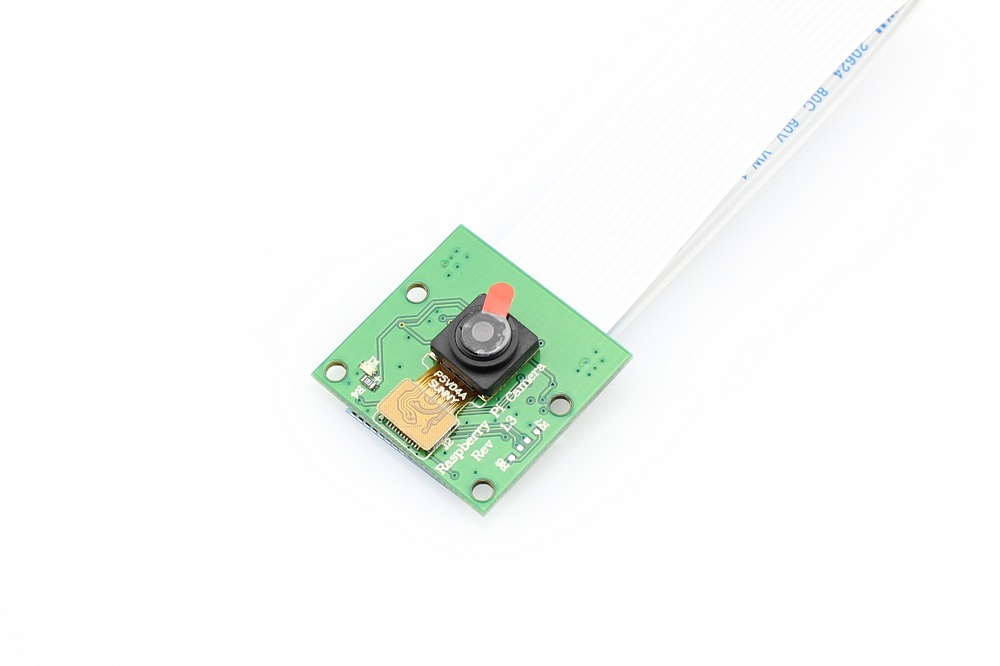

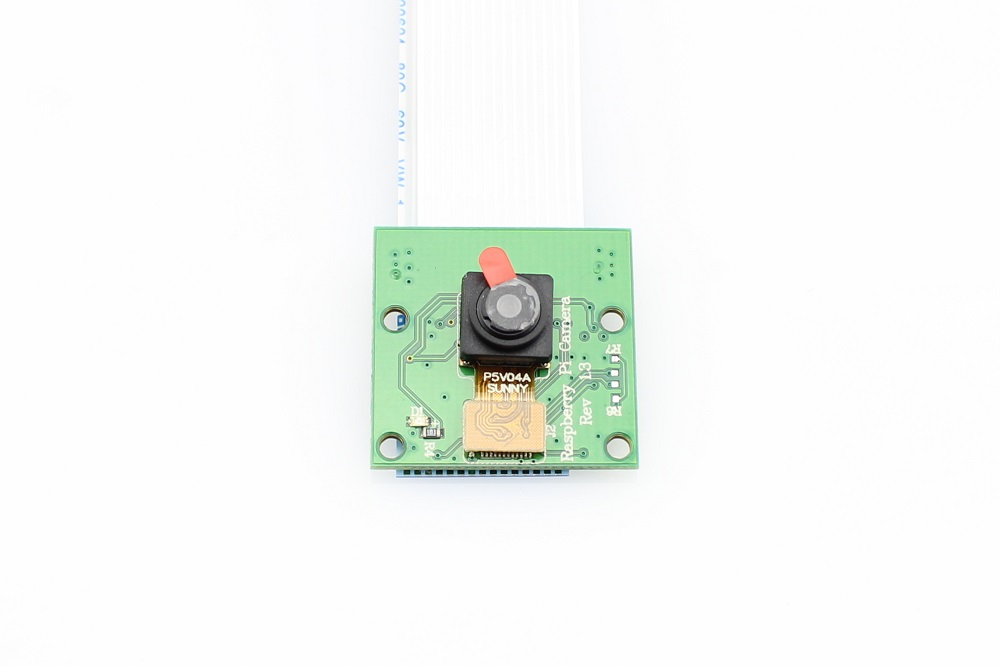

This tiny 5-mega pixel camera module is capable of 1080p video and still images, and connects directly to your Raspberry Pi. It makes it perfect for mobile or other applications, because of the size and weight. The sensor has a native resolution of 5 megapixel, and has a fixed focus lens onboard.
Features
- Tiny Board, at around 25 x 24 x 9mm
- Just over 3g weight
- Capable of 1080p video
- Capable of 2592 x 1944 pixel static images
Specification
| Sensor Type |
OmniVision OV5647 (5-mega pixel) |
| Sensor Size |
3.67 x 2.74 mmI |
| Pixel Count |
2592 x 1944 |
| Pixel Size |
1.4 x 1.4 um |
| Lens |
f=3.6 mm, f/2.9 |
| Angle of View |
54 x 41 degrees |
| Field of View |
2.0 x 1.33 m at 2 m |
| Full-frame SLR lens equivalent |
35 mm |
| Fixed Focus |
1 m to infinity |
| Video |
1080p at 30 fps with codec H.264 (AVC) |
| Board size |
25 x 24 x 9mm (not including flex cable) |
Package list
- Camera Module with Color CMOS QSXGA (5-mega pixel) x1
