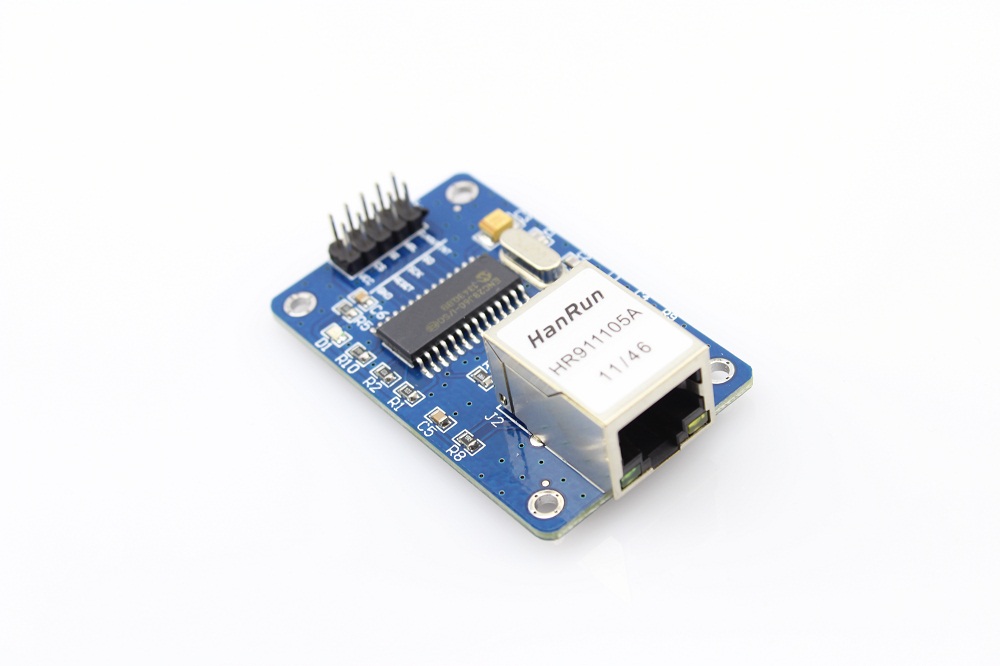

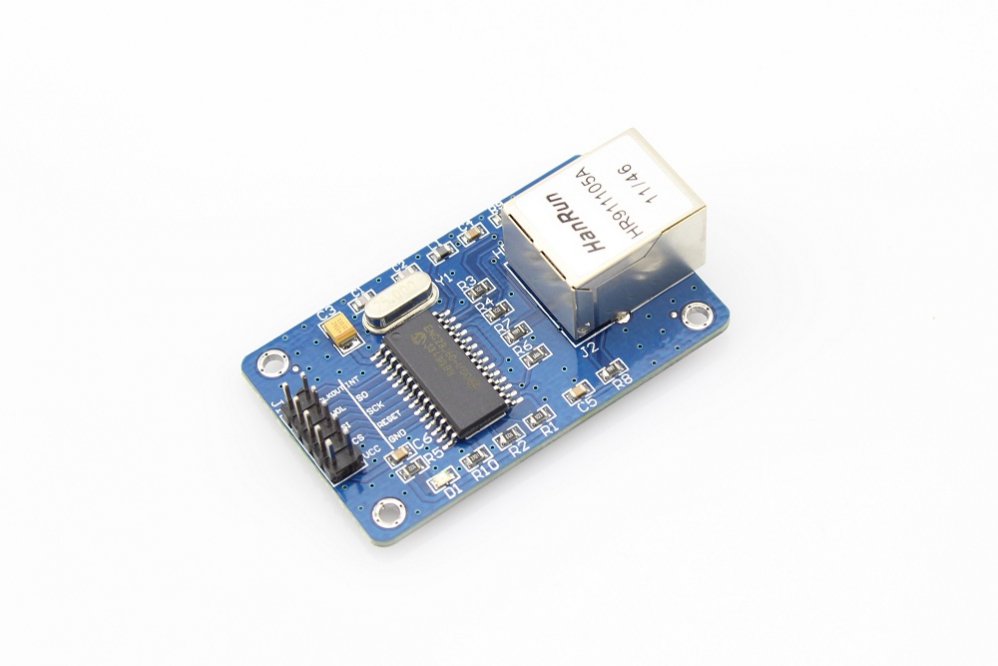

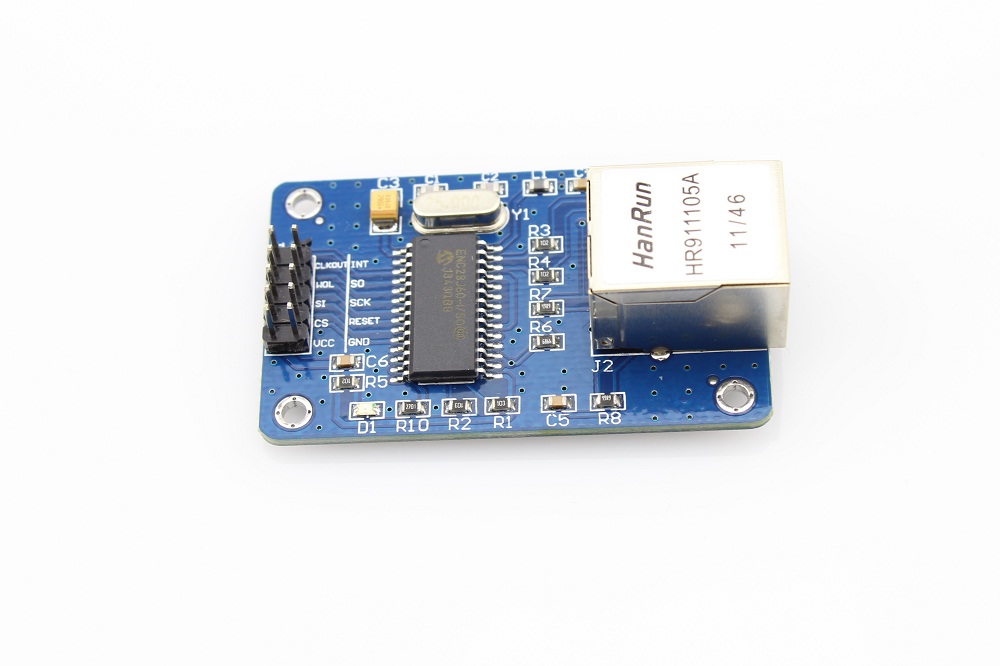

ENC28J60 Ethernet Module

Description

The ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz.

Specification

• ENC28J60 Ethernet chips, SOP28 package

• SPI Interface

• 2X5 connector, can be easily mounted with the MCU

• Power indicator

• Single Supply: +3.3 V

• PCB size: 55x36 mm

Document

• ENC28J60 datasheet

• Schematic

• Arduino Dome Code
