HAOYU CR1

Starting at: US $65.00
Always Free Shipping
  • Model: HAOYU-CR1
  • Shipping Weight: 120g
  • 99 Units in Stock

Description

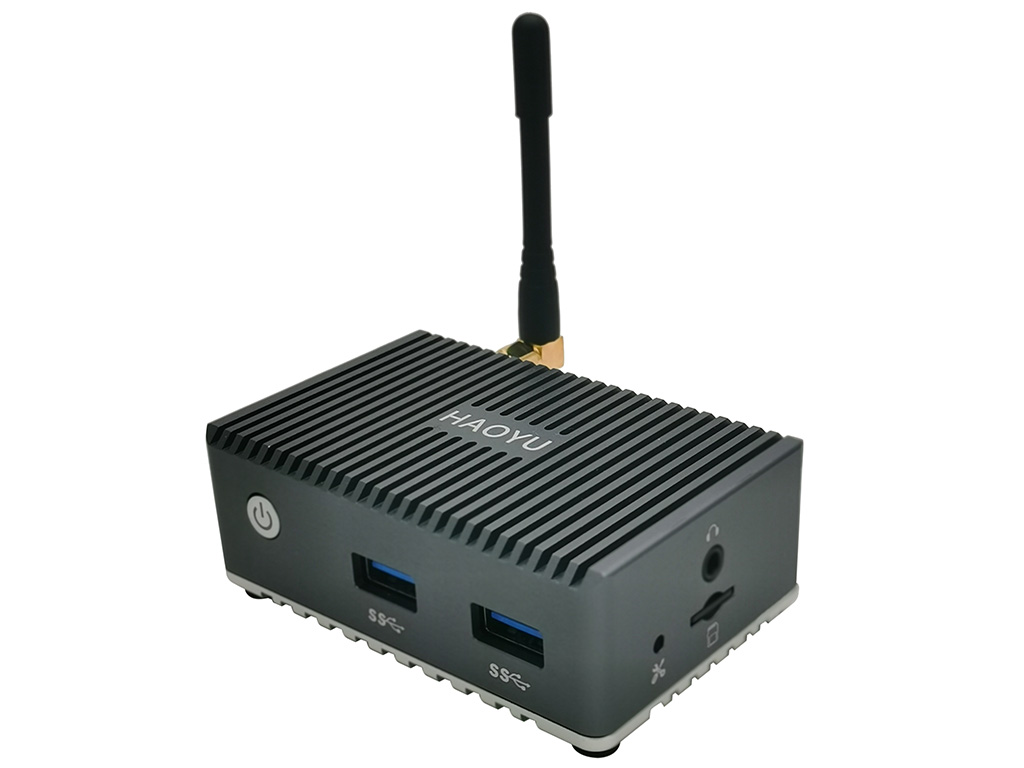

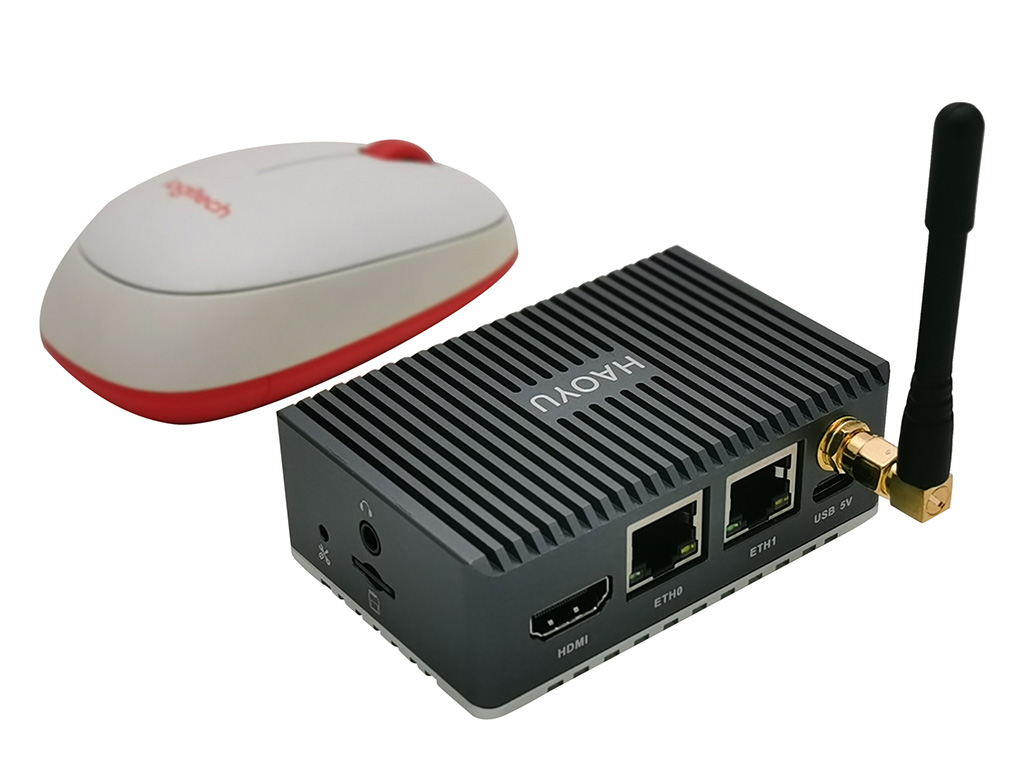

HAOYU CR1 - a networking Single Board Computer in an ultra-small form factor providing a wide range of networking capabilities.

The HAOYU CR1 offers makers,IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.

Specifications

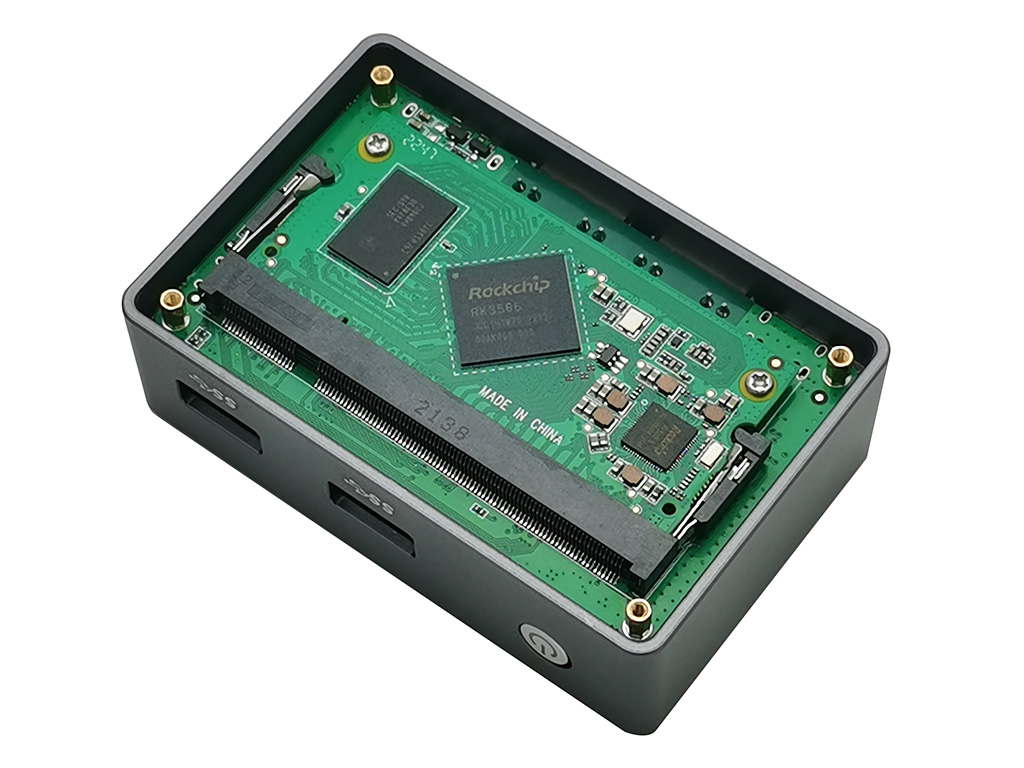

  • Based on MarsBoard CM4 SODIMM (RK3566 based, 4x A55@1.8Ghz, Mali G52 GPU, 0.8T NPU)

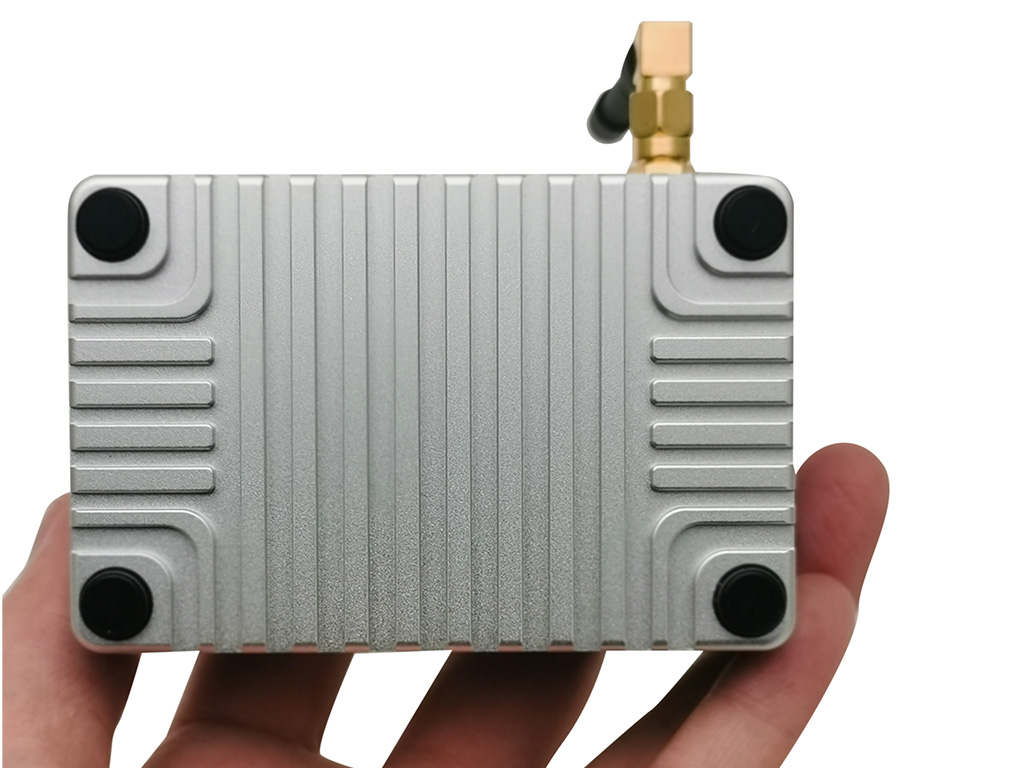

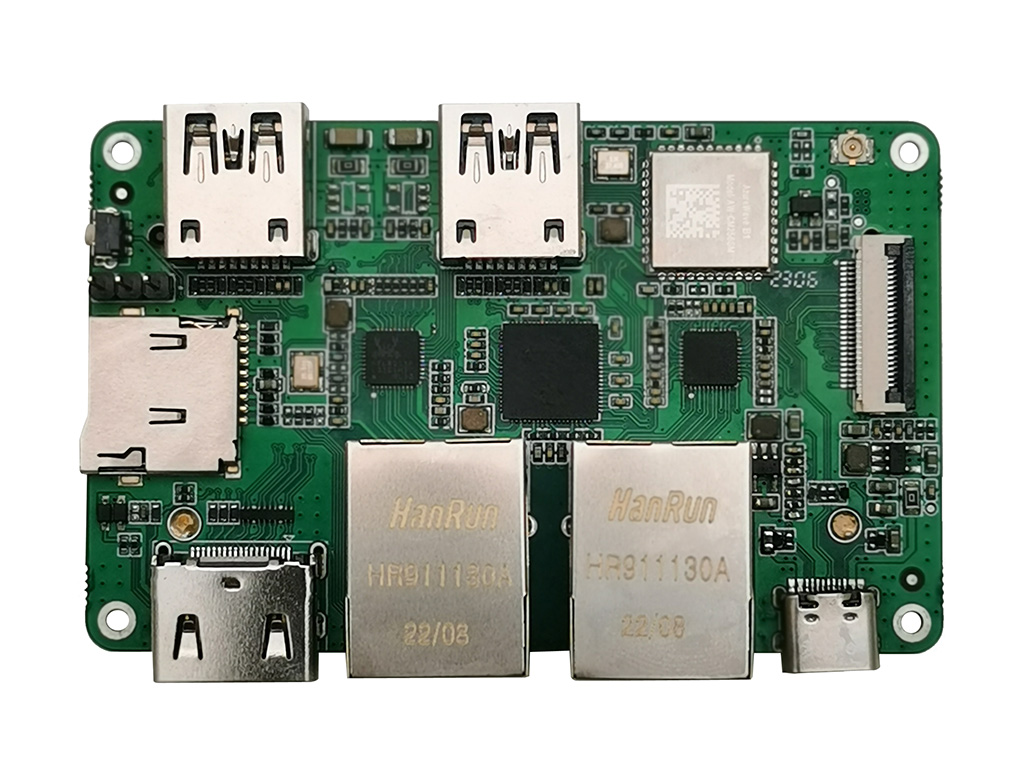

  • Upgradeable SoM and carrier Board design with easy to assemble metal case

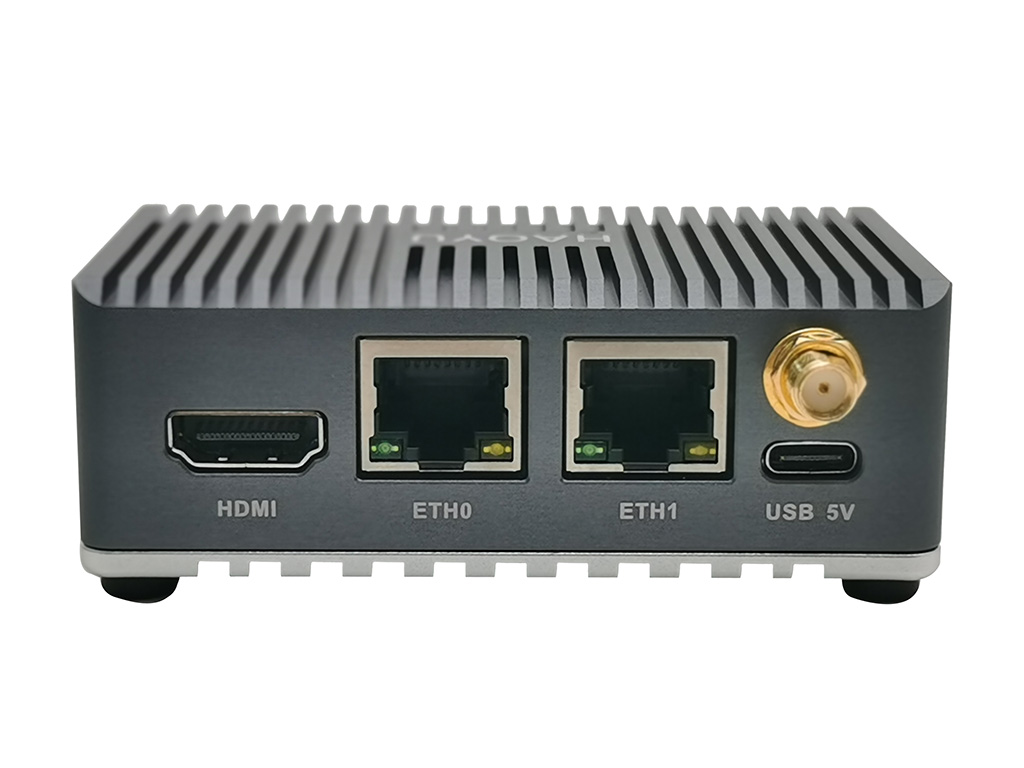

  • Dual 2.5G ethernet
  • Support SDIO WIFI BT

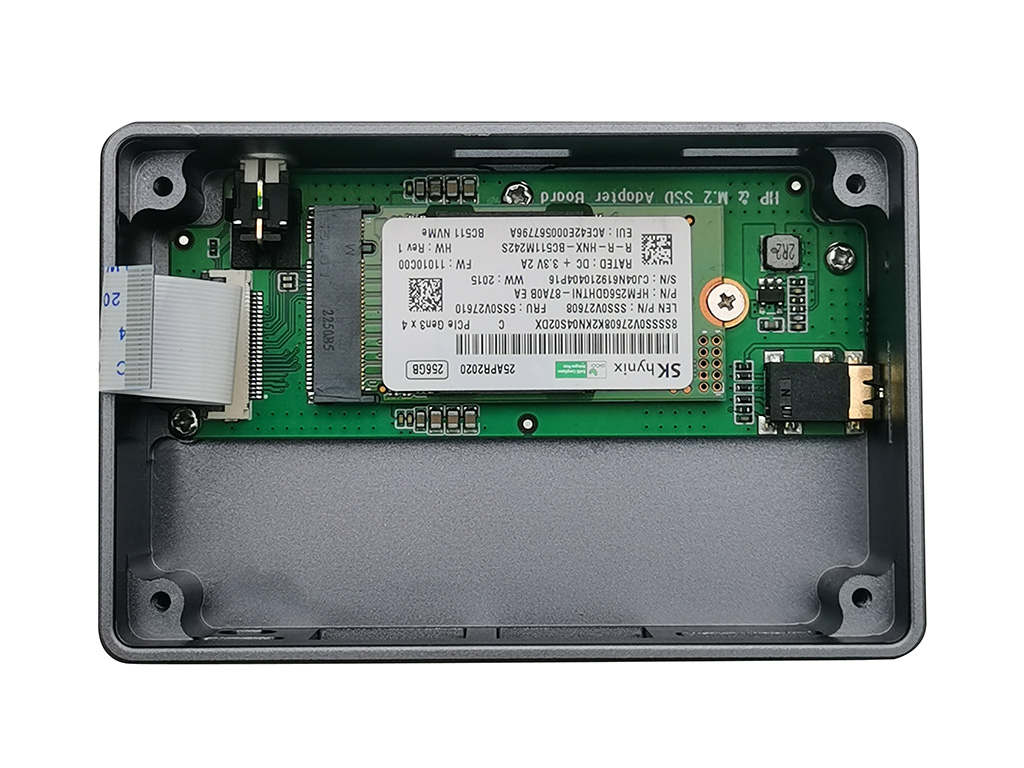

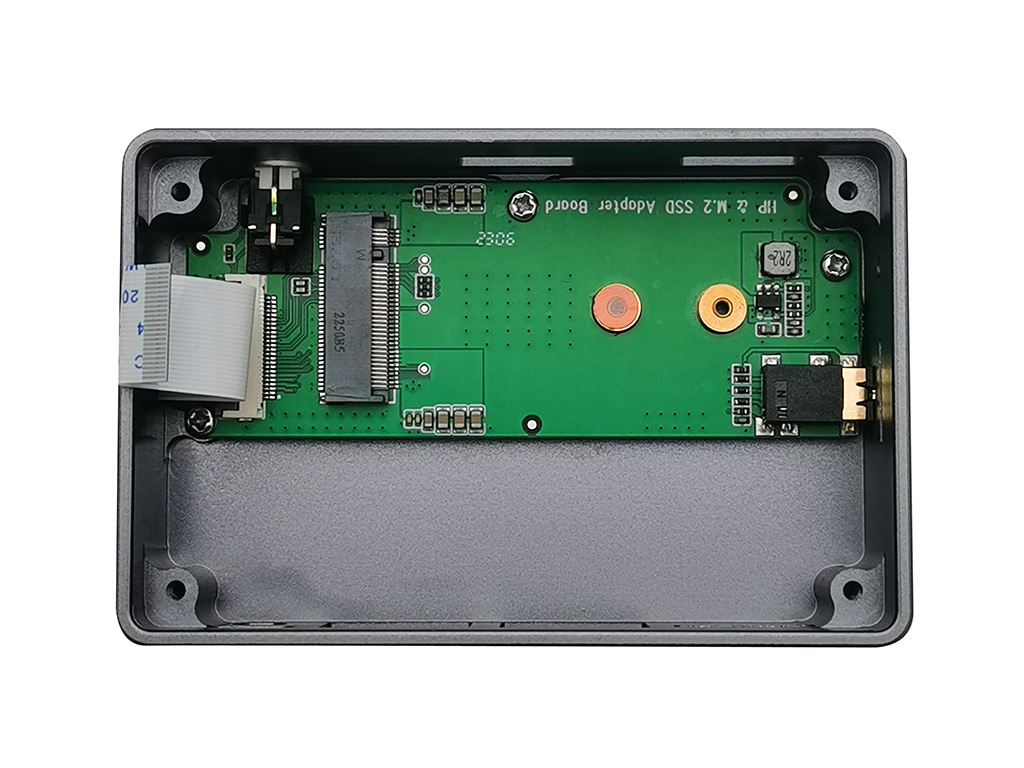

  • Support M.2 2242 SATA SSD
  • One uSD card slot

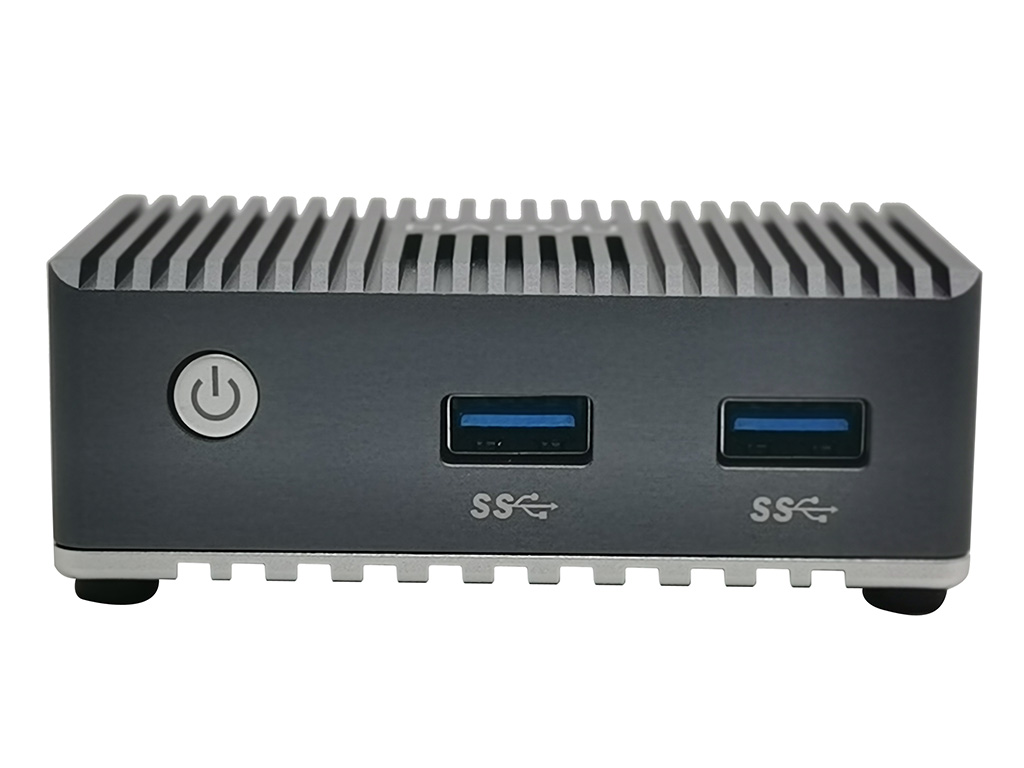

  • Two USB 3.0 HOST
  • One USB type C for power and serial console
  • Two button for user control

Features

SoC

CPU
GPU
NPU
RK3566

Quad-core Cortex-A55, frequency 1.8Ghz

Mali G52
0.8TOPS NPU

Memory 1/2/4/8GB LPDDR4
Storage 32/64/128GB eMMC
μSD card (μSD slot supports up to 128 GB μSD card)
M.2 2230 SSD (M.2 connector supports up to 1TB M2 NVME SSD)
Display HDMI 2.0 up to 1920x1080 60p

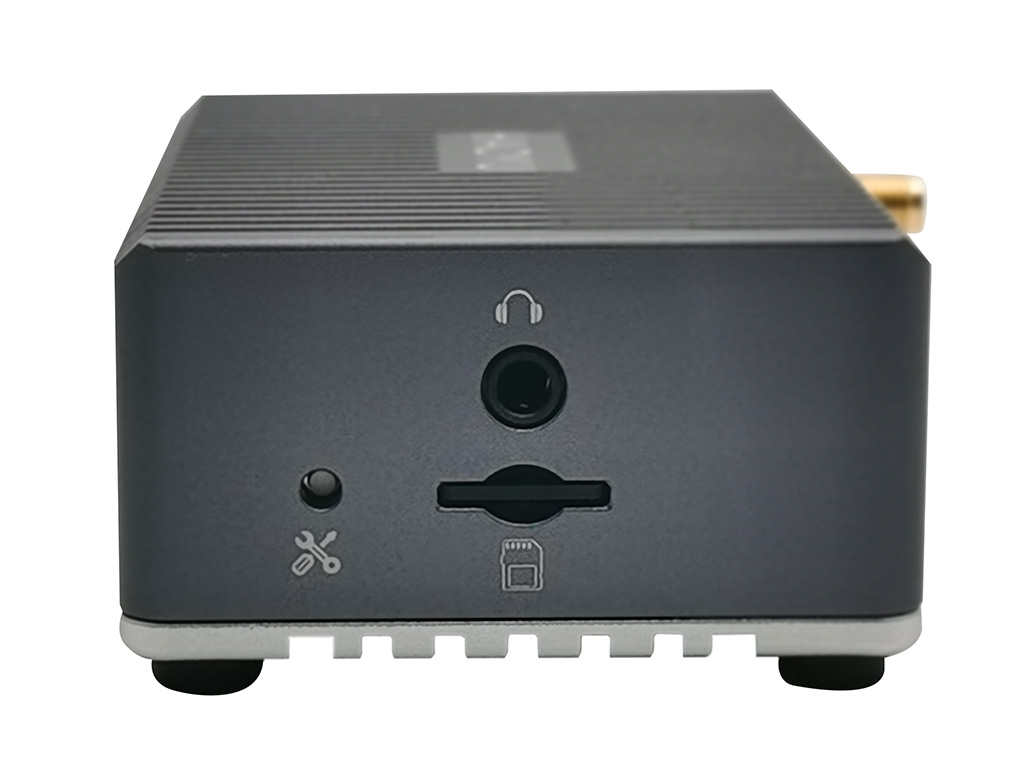

Audio 3.5mm jack  for both input and output
Wireless 802.11 ac WiFi 5/ BT 5
USB 1 x USB 3.0 Type-C, capable of storage expansion and 5V power supply
2 x USB 3.0 HOST
Ethernet 2 x 2.5GbE LAN
Key 1 x user button for emmc download
1 x user button for power
Power USB type C 5V, 5V/3A is suggested when using without SSD, 5V/5A is suggested when using with SSD.
Size 85 x 56 x 30mm

Package list

  • HAOYU CR1 (with Metal Case) x1
