Description

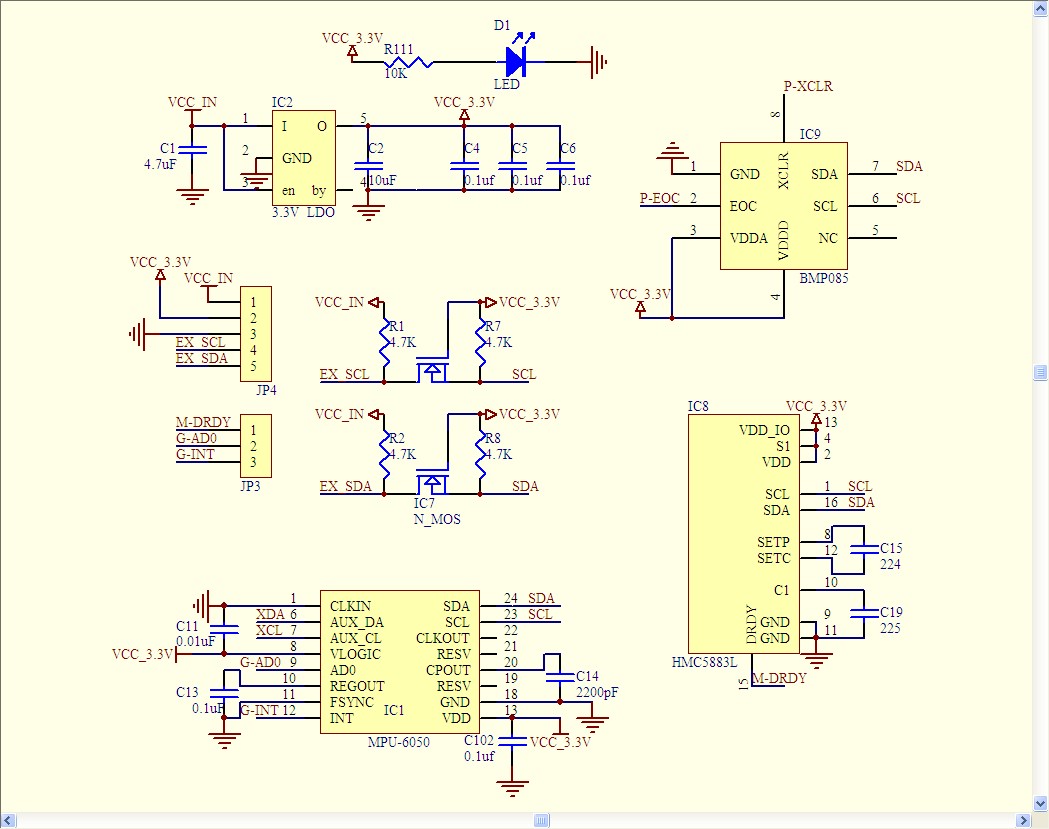

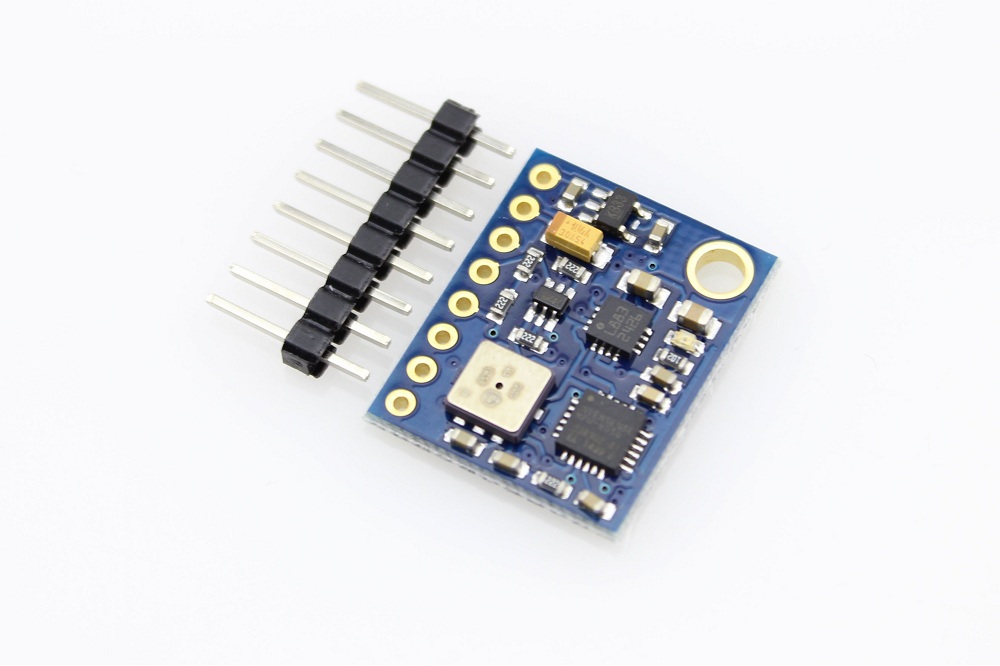

This IMU 10DOF is a motion tracking module. Its design is based on the sensor MPU6050,HMC5883L and BMP085.The sensor MPU6050 which is the world’s first integrated 6-axis Motion Tracking device, that combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor™ (DMP).The Honeywell’s HMC5883L which is a 3-axis digital compass. The BMP085 is a high-accuracy chip to detect barometric pressure and temperature.You can uses it in your DIY or your product,for example, Quadcopter, Self-Balancing Robot and so on.
Features
- Three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs
- Three 16-bit ADCs for digitizing the accelerometer outputs
- A 12-bit ADCs for digitizing the magnetometer outputs
- Gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps)
- Accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g
- Wide Magnetic Field range:+/-8 Oe
- Pressure range:300 to1100hPa (+9000m to -500m above sea level)
- I2C interfaces
- Power supply: 3-5v
Applications
- TouchAnywhere™ technology (for “no touch” UI Application Control/Navigation)
- MotionCommand™ technology (for Gesture Short-cuts)
- Motion-enabled game and application framework
- Location based services, points of interest, and dead reckoning
- Handset and portable gaming
- Motion-based game controllers
- 3D remote controls for Internet connected DTVs and set top boxes, 3D mice
- Wearable sensors for health, fitness and sports
- Enhancement of GPS navigation
