MarsBoard Rockchip PX2 Development Board

Description

Rockchip PX2 is completely compatible with Rockchip RK3066, PX2 is more focused on industrial application, contrary to Rockchip RK3066 which targets consumer devices such as tablets and TV boxes.

MarsBoard Rockchip PX2 Development Board contains CM-PX2 and SOM-RK3066, SOM-RK3066 is OSHW and PCB files are available for study, learn, modification, re-production.

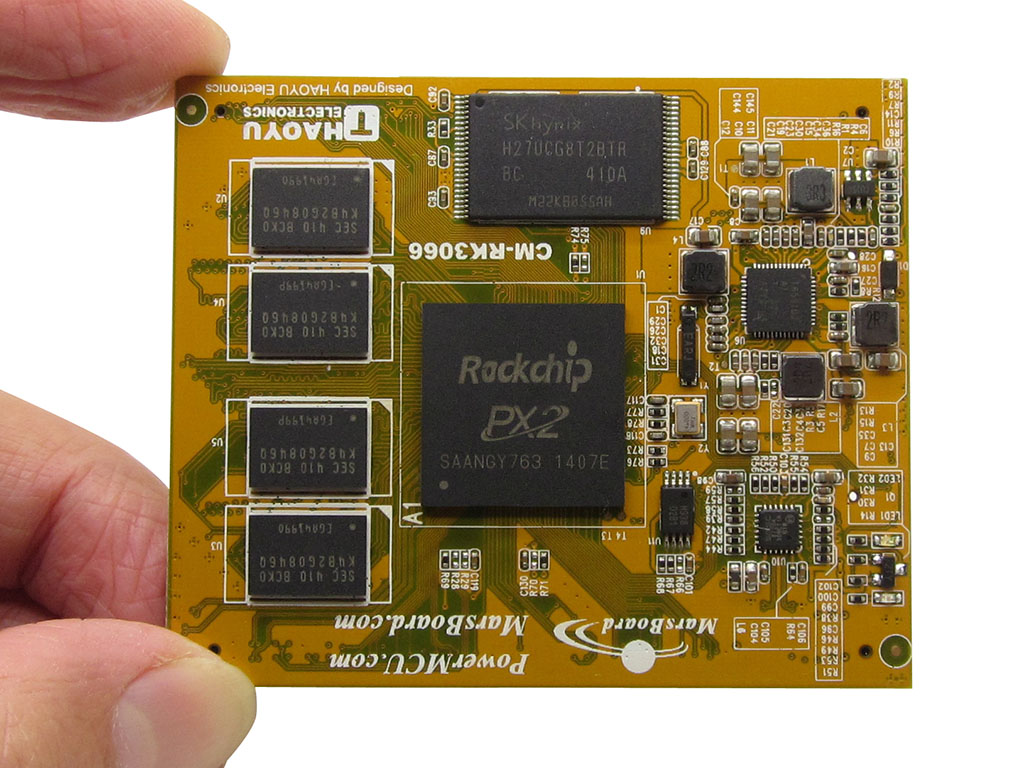

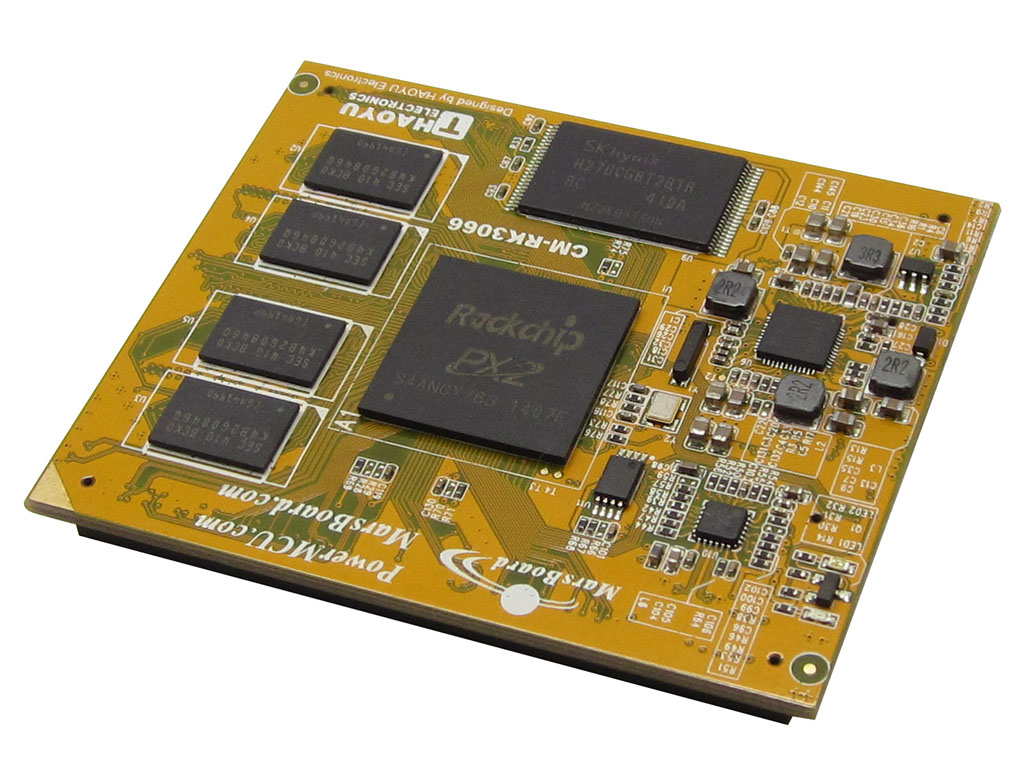

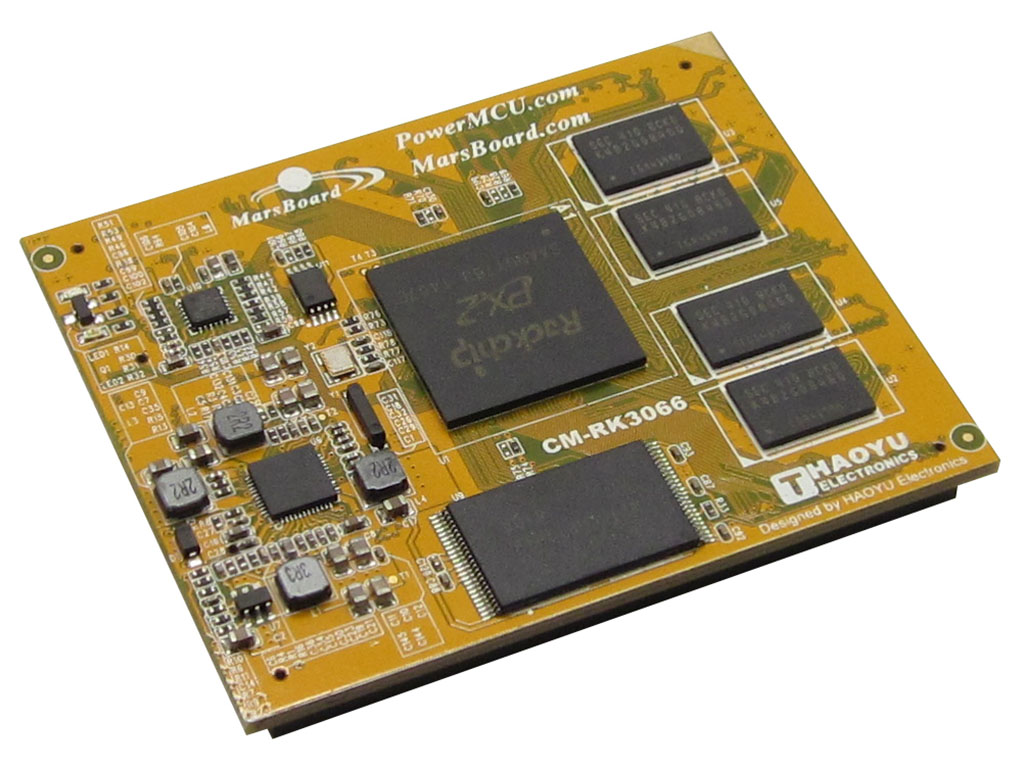

CM-PX2 is System on Chip module, which contains Rockchip PX2 Dual Core Cortex-A9 processor, Power managment Unit TPS659102, Ethernet PHY LAN8720A, 1GB DDR3 memory and 8GB NAND Flash. All PX2 signals are available on 2 connectors x 100 pin and 1 connector x 40 pin with 1.27mm picth.

Features

• SoC – Rockchip PX2 ARM Cortex A9 Dual-Core CPU @ 1.4GHz + Mali-400MP4 GPU
• System Memory – 1GB DDR3 DRAM
• Storage – 8GB Nand Flash
• Ethernet – 10/100 Mbps
• Connector - 2 connectors x 100pin, 1 connector x 40pin(No welding)
• Size - 70 x 58mm

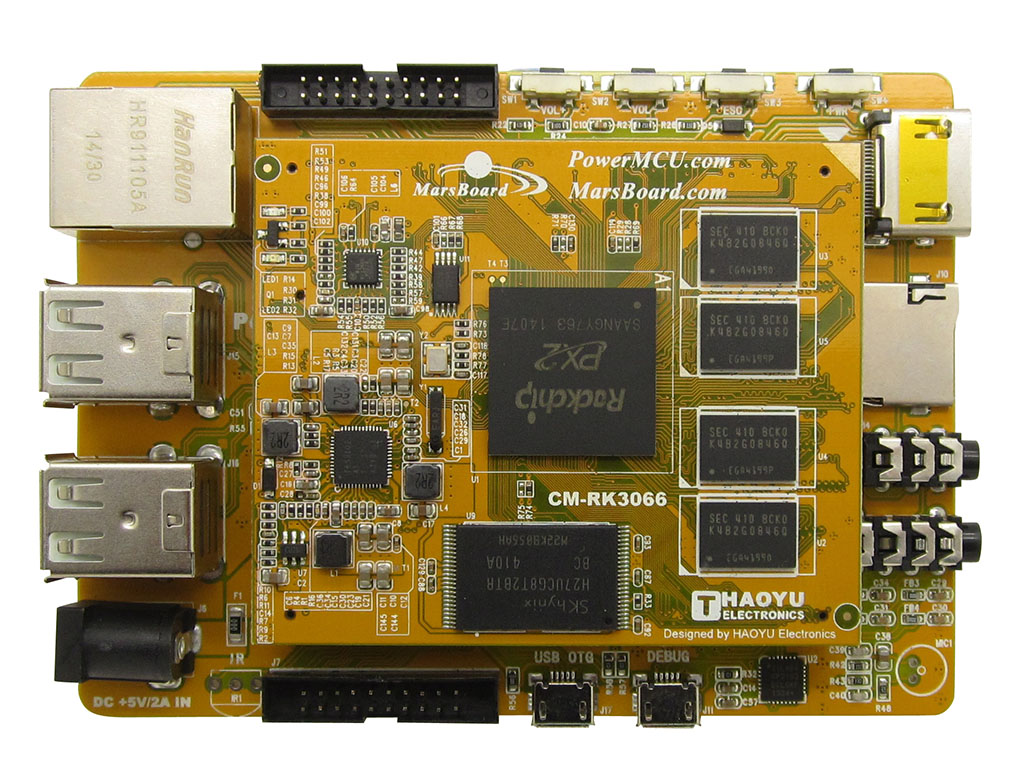

SOM-RK3066 is evaluation board based on CM-RK3066 module and is routed on 2 layers only. SOM-RK3066 is done to explore all features of RK3066 but the files are available and customers can tailor it to their needs.

Reference design for SOM-RK3066 with HDMI, LCD, CTP, Audio Out, Camera, 10/100M Ethernet,USB-OTG,and 4 USB hosts is available with PADS9.5, Protel99SE, AD, PCB files, so everyone can modify and tailor to his needs.

Features

• Connectors to accomodate CM-RK3066
• 10/100M Ethernet connector
• USB hosts x 4
• USB-OTG
• LCD connector (remove U2) support HY050CTP(800x480), HY070CTP(800x480), HY070CTP-HD(1024x600 RGB interface only), HY101CTP (1024x600 RGB interface only)
• CTP, Capacitive touch
• HDMI connector supported 1080p@60Hz
• Camera connector
• Audio Out
• MIC input (No welding Microphones)
• IR Remote  (No welding IR receiver)
• SD-MMC card connector
• 4 buttons for Android apps
• USB Debug terminal (USB to UART with CP2102)
• RTC Battery connector
• One UEXT connector
• Power supply 5V/2A input, 5.2mm(ext. diameter) x 2.1mm (int. diameter) barrel plug
• Size 105 x 78mm

1. Rockchip PX2 ARM Cortex A9 Dual-core @ 1.4Ghz + Mali-400 GPU
2. 1GB DDR3 SDRAM, up to 2GB DDR3 SDRAM
3. 4GB Nand Flash & eMMC FLASH ( option )
4. Power Management Unit - TPS659102
5. Power Indicator LED
6. TX indicator LED use for debug
7. 10/100M Ethernet PHY - LAN8710A
8. J3, expansion 20x2 pin 1.27MM
9. J2, expansion 50x2 pin 1.27MM
10. J1, expansion 50x2 pin 1.27MM

1. HDMI A Type socket
2. Audio Codec IC - ALC5631Q
3. Mrcro SD card (TF card)socket
4. Audio HPHONE Output
5. Speaker Output
6. MIC input (No welding Microphones)
7. USB to UART, CP2102
8. USB Debug port
9. USB-OTG Port
10. EXT connector
11. IR Receiver - not soldered
12. Power Supply - 5V/2A
13. 2 x USB 2.0 Host port
14. CR1220 RTC Battery Holder
15. 2 x USB 2.0 Host port
16. RJ45 10/100M Ethernet
17. USB 2.0 Host IC - FE1.1S
18. Ext Port - Camera CIF port
19. VOL + (Recover Key), VOL -, ESC, Power KEY (from left to right)
20. LCD RGB Interface

MarsBoard-RK3066 is base on Rockchip RK3066 processor. RK3066 is one of the popular processors using in the MID or TV box. It integrates two ARM Cortex-A9 processors and four mali400 graphic processors .It is one of the most powerful video decoding application processor in the world. MarsBoard-RK3066 supported Linux OS(Debian,Ubuntu etc) and Android.MarsBoard-RK3066 also integrate most of the common use interface and make it very suitable for product prototype designed, DIY and education.

Package content

1. 1x MarsBoard PX2
2. 1x USB wifi ( RTL8188EU)

Documents

• CM-RK3066_SCH
• SOM-RK3066_SCH
• Rockchip_PX2_datasheet_V1.1.pdf

 for more information, you can visit marsboard.com
