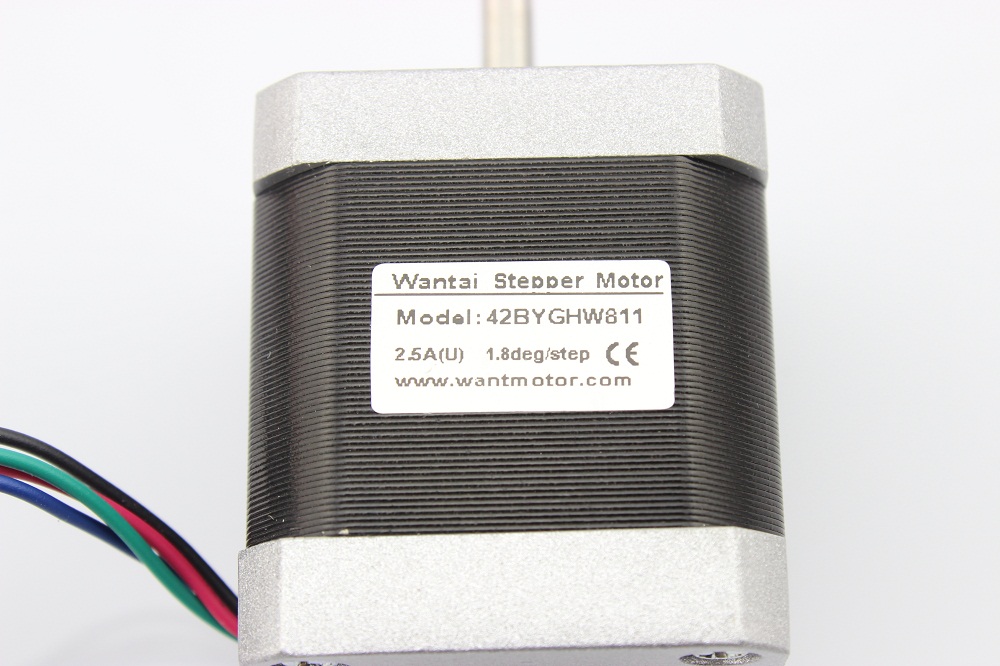

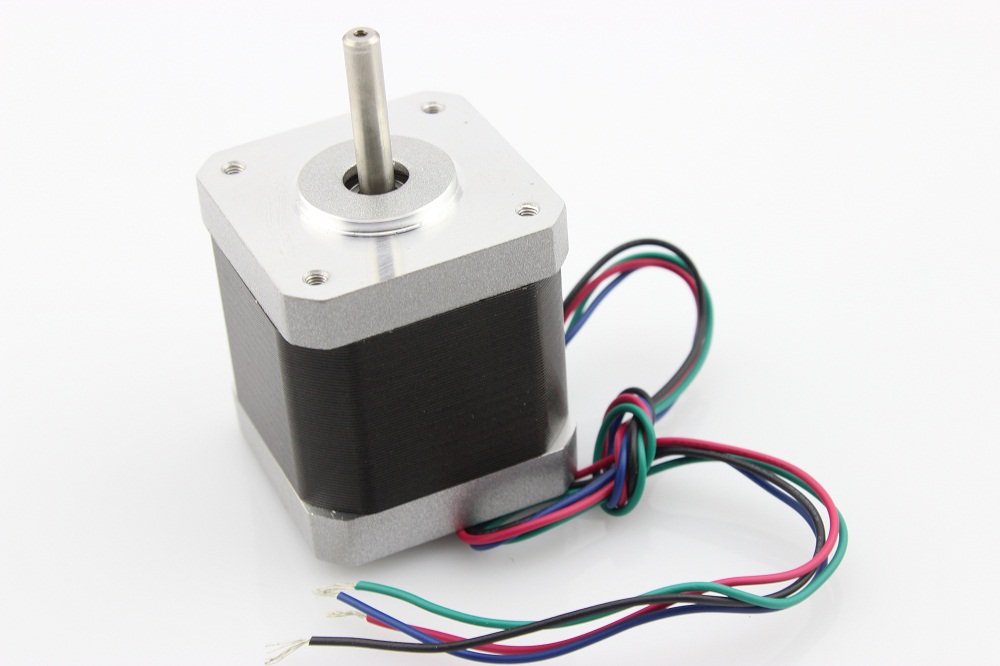

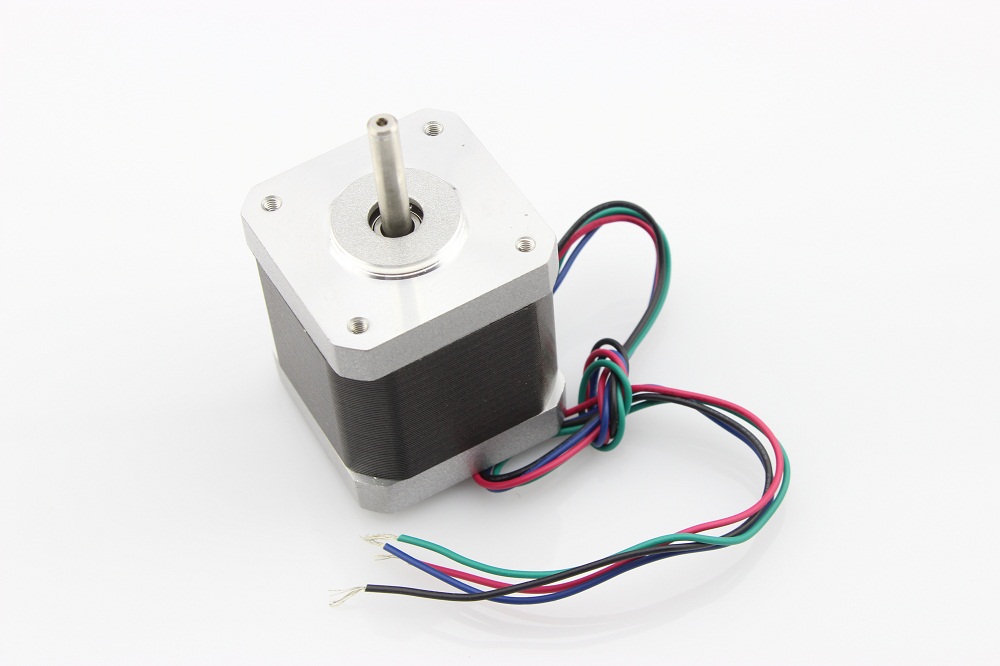

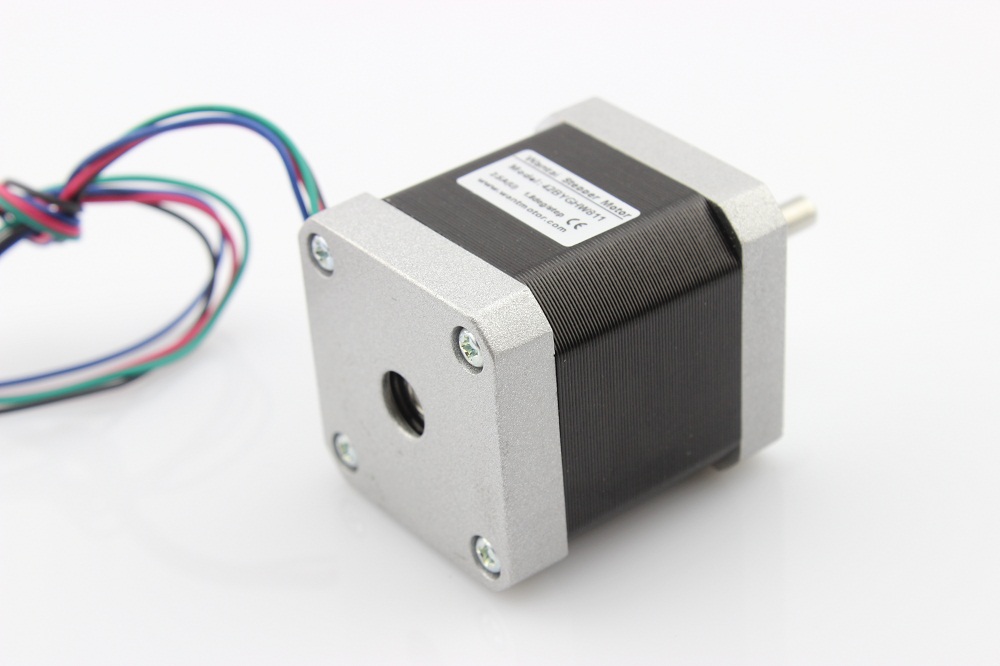

NEMA-17 Bipolar 48mm Stepper Motor

Description

Stepper motors are different from DC motors in that they have to be pulsed to move in set increments. That means you can't simply hook them up to a power supply to make them go, but they have other advantages, like accurate positioning (1 pulse=1 increment of movement), and lots of low-speed torque (ability to twist things). This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. This NEMA-17 stepper motor produces a whopping 4800g*cm (66.7in*oz) of holding torque. Applications: stage lighting, laboratory instruments, textile machinery, telescope positioning, robotics, etc.

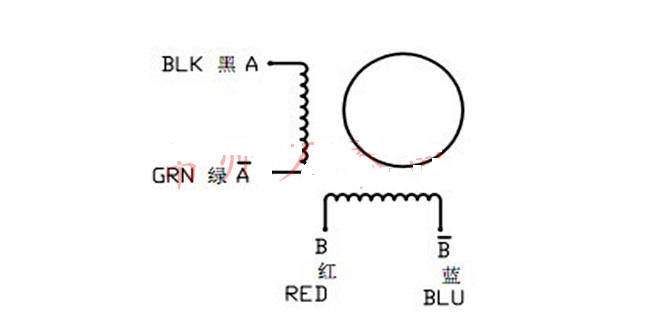

Pinout

• Black wire =A

• Green wire = B

• Red Wire = C

• Blue wire = D

Features

• Very High Torque

• NEMA-17 Bipolar 4-wire

• Step angle: 1.8 degree

• Holding Torque: 4800g-cm@2.5 Amps

Specification

• Number of steps: 200 Step

• angle: 1.8 degrees

• Rated Voltage: 3.1V

• Phase Resistance: 1.25 ohm

• Rated Current : 2.5 A

• Phase Inductance : 1.8 mH

• Holding torque: 4.8 kg.cm

• Number of Leads: 4

• Dimensions axis: Ø5 x 22 mm

• Dimensions: 42 x 42 x 48 mm

• Weight: 340 g

Document

• 42BYGHW811 datasheet
