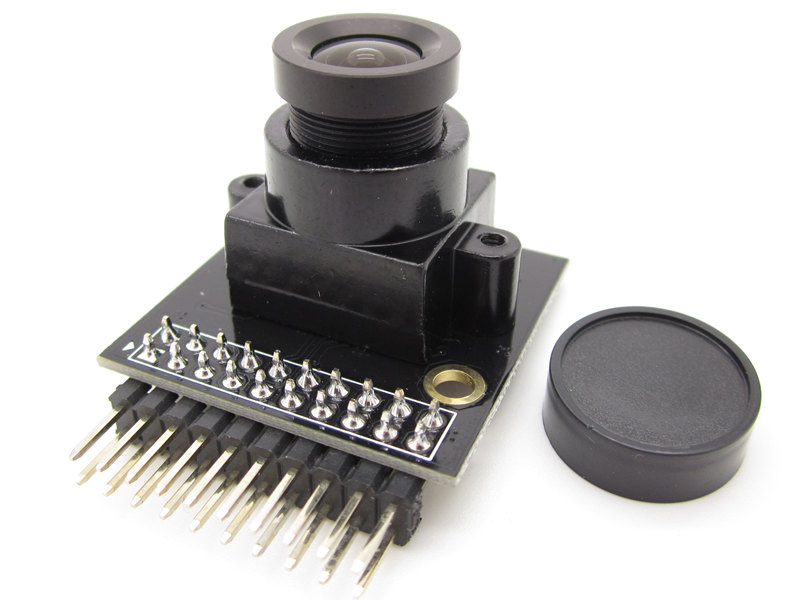

OV7725 + AL422B(FIFO) Camera Module

Description

This camera module is special for robot、electronic car、image processing and some other
electronic gadgets.

It's very useful for Electronic lovers.

You can make it be more powerful and useful beyond your imagination.

Feature

1、Support RawRGB, RGB(GRB4: 2:2, RGB565/555/444), YUV(4:2:2) and YCbCr(4:2:2) output format

2、Support image output of various sizes from CIF to 40x30

3、Support high frame rate output of 120FPS(QVGA, more suitable for capturing fast-moving objects)

4、With optical size of 1/4", pixel area of 6μm x 6μm, and sensitivity up to 3.0V/(Lux-sec)

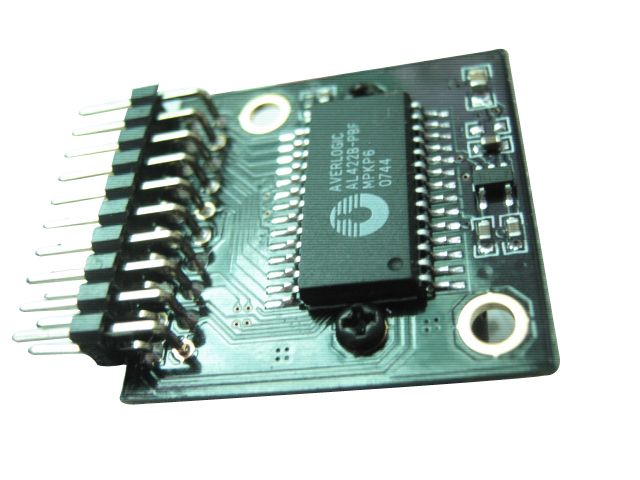

5、 With onboard 380K byte FIFO, easily connecting with MCU (no longer need to worry about MCU's problem of slow image acquisition)

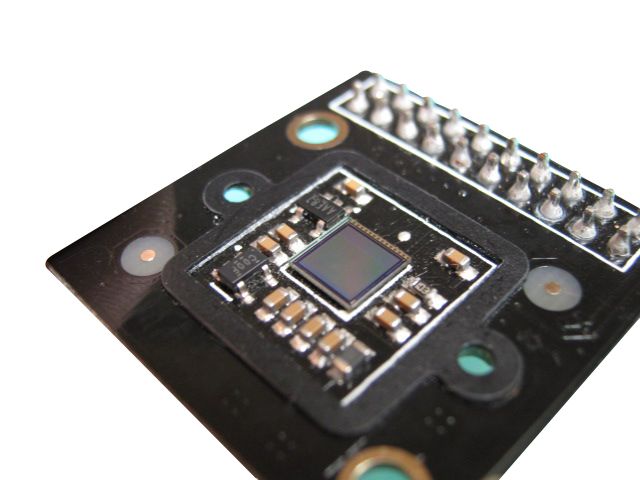

6、Image sensor is the BGA package, with high installation accuracy

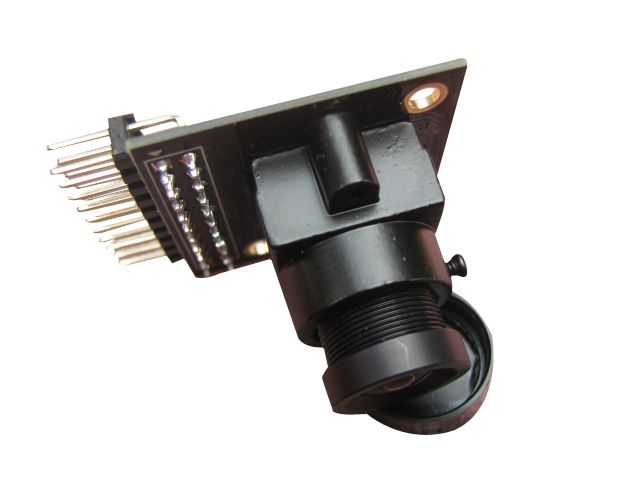

7、Lens is made of high quality and transmittance glass and magnesium alloy cover

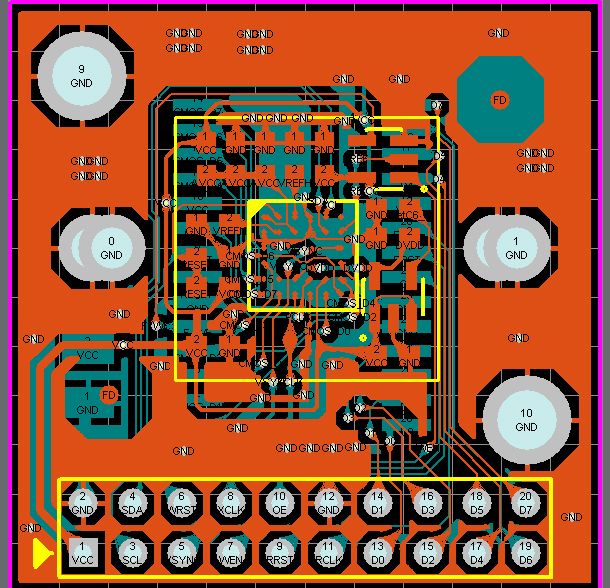

8、Module size 3cm x 3cm (+/- 0.5mm), 2*10 pins, 2.54mm spacing (DuPont wire can be connected)

Document
Al422 datasheet.pdf
OV7725 datasheet(V1.2).pdf
Camera (OV7725) Driver code.rar
OV7725 + AL422B(FIFO) Camera Module(V1.0) Schematic.pdf
