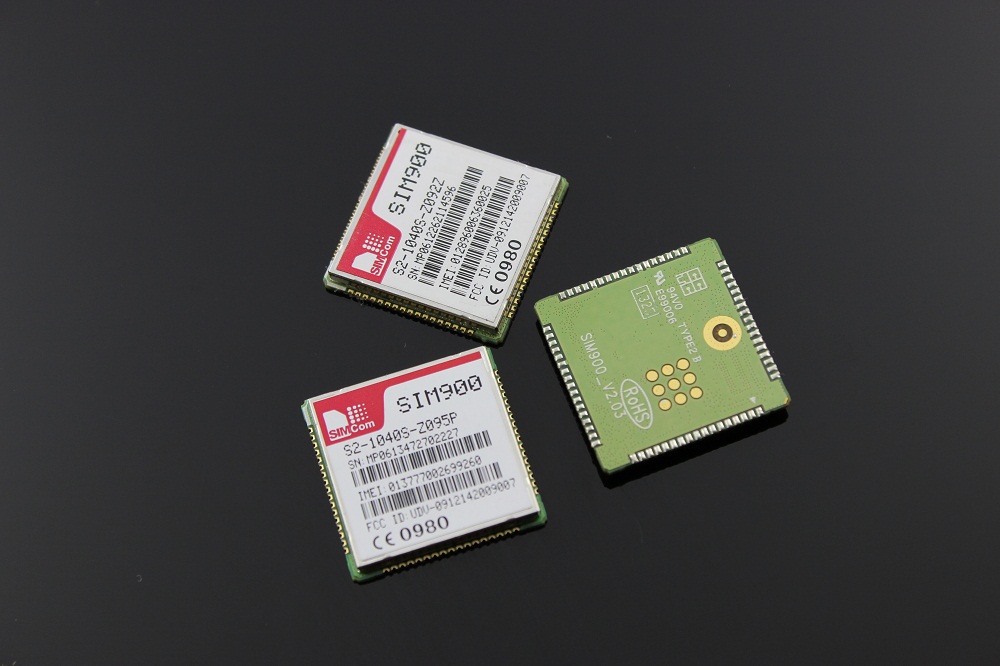

SIM900A Module - 4 Frequency

Description

SIM900A is an ultra compact and reliable GSM&GPRS modulein SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions.

Featuring an industry-standard interface, the SIM900A delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x 3 mm, SIM900A can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.

General features

• Quad-Band 850/ 900/ 1800/ 1900 MHz

• GPRS multi-slot class 10/8

• GPRS mobile station class B

• Compliant to GSM phase 2/2+:

  • Class 4 (2 W @850/ 900 MHz)
  • Class 1 (1 W @ 1800/1900MHz)
• Dimensions: 24*24*3mm

• Weight: 3.4g

• Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)

• SIM application toolkit

• Supply voltage range : 3.1 ... 4.8V

• Low power consumption: 1.5mA(sleep mode)

• Operation temperature: -40°C to +85 °C

Specifications for Fax

• Group 3, class 1

Specifications for Data

• GPRS class 10: max. 85.6 kbps (downlink)

• PBCCH support

• Coding schemes CS 1, 2, 3, 4

• CSD up to 14.4 kbps

• USSD

• Non transparent mode

• PPP-stack

Specifications for SMS via GSM/GPRS

• Point to point MO and MT

• SMS cell broadcast

• Text and PDU mode

Software features

• 0710 MUX protocol

• embedded TCP/UDP protocol

• FTP/HTTP( available at late July ,2010)

• FOTA ( available at July ,2010)

• MMS (available at July ,2010)

• Embedded AT (available at Q3,2010)

Specifications for Voice

• Tricodec:

  • Half rate (HR)

  • Full rate (FR)

  • Enhanced Full rate (EFR)

• Hands-free operation (Echo suppression)

• AMR

  • Half rate (HR)

  • Full rate (FR)

Interfaces

• Interface to external SIM 3V/ 1.8V

• analog audio interface

• RTC backup

• SPI interface (option)

• Serial interface

• Antenna pad

• I2C

• GPIO

• PWM

• ADC

Compatibility

• AT cellular command interface

Certificates

• CE

• FCC

• ROHS

• PTCRB

• GCF

• IC

• ICASA

• TA

• REACH

• AT&T

Package list

• SIM900A Module x1

Document

• Manual & Datasheet & Source & Application
