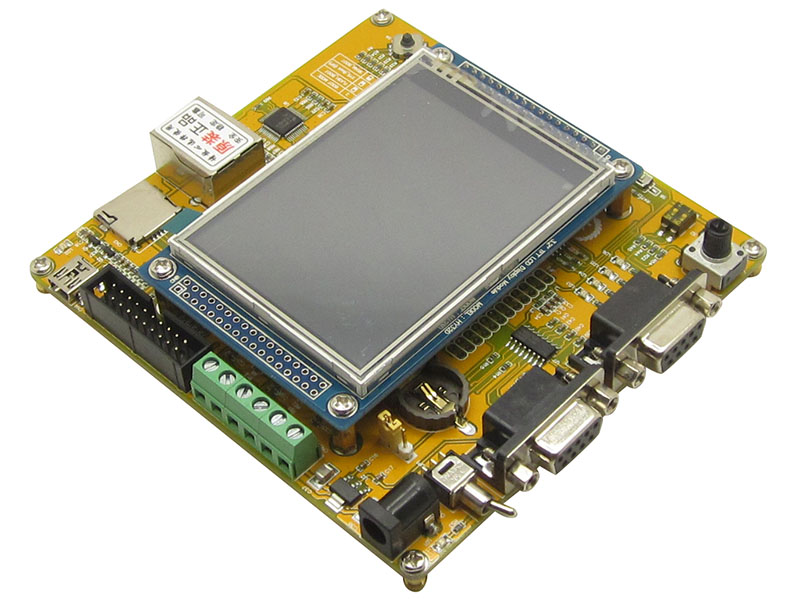

STM32F107VCT6 Development Board + 3.2" TFT LCD

Description

The STM32F107 Development Board introduces the ST STM32F107VCT6 family of ARM Cortex-M3 processor-based devices, allowing you to create and test working programs for this advanced architecture. The Board has a wide range of interfaces making it a great starting point for your next Cortex-M3 project.

Features

• 72MHz STM32F107VCT6 ARM Cortex-M3 processor-based MCU in 100-pin LQFP
• On-Chip Memory: 256KB Flash & 64KB RAM
• On board 16 MBit Flash with SPI interface (SST25VF016B)
• On board 2 KBit EEPROM with I2C interface (24LC02)
• 10/100 Ethernet Port
• USB-OTG Support USB Slave, USB Host ( Mini-USB type A interface)
• 3.2 inch Color QVGA TFT LCD Touch Screen
• 2 Serial Ports
• 2 CAN Bus Interface Ports
• Micro SD Card Interface
• 5-position Joystick and 4-button (Wakeup, User, Tamper, Reset)
• Analog Voltage Control for ADC Input
• Extension port connectors for many of microcontrollers pins
• RTC support
•  Four status leds
• 2x10 Pin JTAG Connector
• On-Board 3.3V Regulator, 5V input

Shipping List

• 1 x STM32F107VCT6 Development Board with 3.2" TFT LCD
• 1 x Mini-USB type A to USB type A Female cable
• 1 x Software and Example Code CDROM

Documents

• Development Board Schematic
• Software and Example Code CDROM
