System on chip module with STM32F429IGT6 CORTEX-M4 microcontroll

Description

CM-STM32F4XXIG is System on Chip module, which contains 180 MHz Cortex-M4 STM32F429IGT6 microcontroller with 32MB SDRAM, 4MB SRAM, 8MB NOR Flash and a 128MB Nand flash on a single board. The SOM interfaces to a baseboard (motherboard) using two 50-pin interface connectors.

Features

• Processor: ST STM32F429IGT6, ARM Cortex-M4 Microcontroller, working at 180MHz
  - 256 KB SRAM for code and data use
  - 1 MB ROM containing boot code and on-chip software drivers

• 32MB SDRAM

• 4MB SRAM

• 8MB NOR

• 128MB Nand Flash

• One Power indicator

• One user LED

• 32.768 kHz crystal for Real Time Clock.

• Connector: 2 connectors x 50pin 2.0mm pitch.

• Dimensions: 50mm x 40 mm

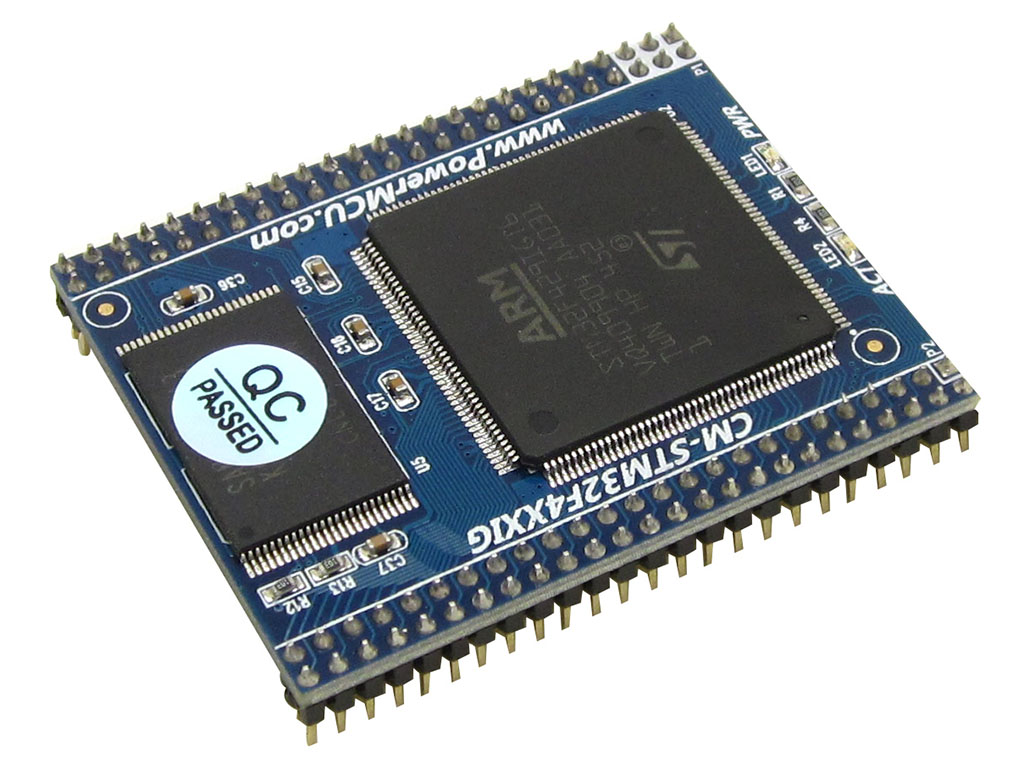

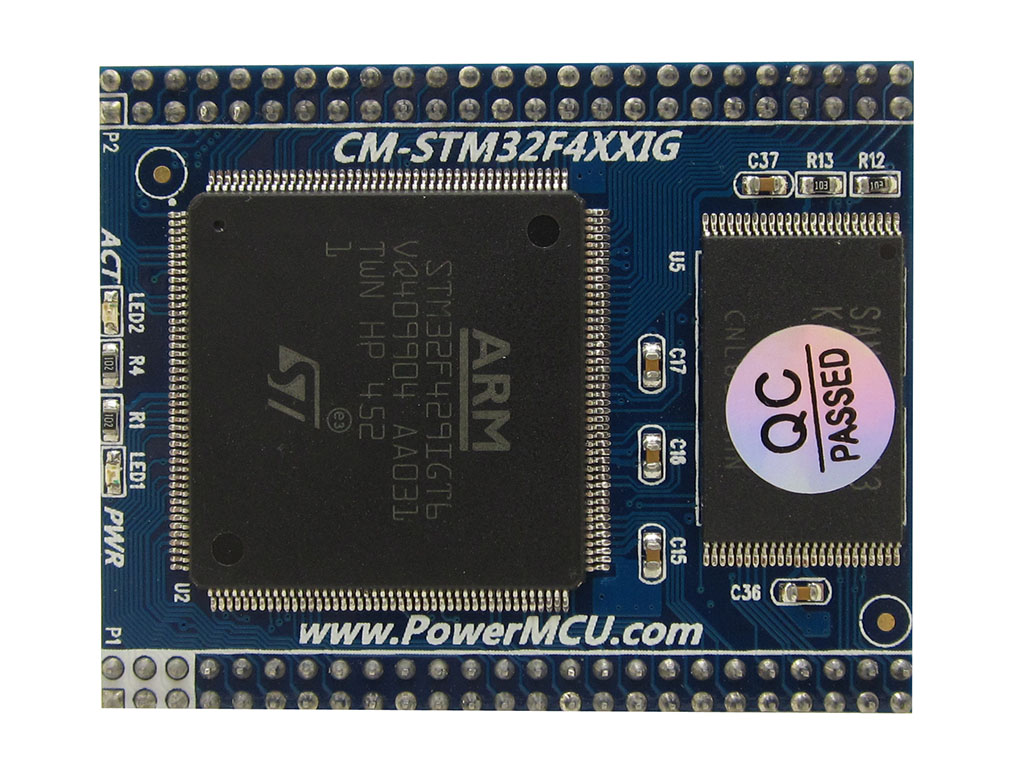

1. STM32F429IGT6, ARM Cortex-M4 Microcontroller
2. 128MB Nand Flash
3. user LED
4. Power indicator

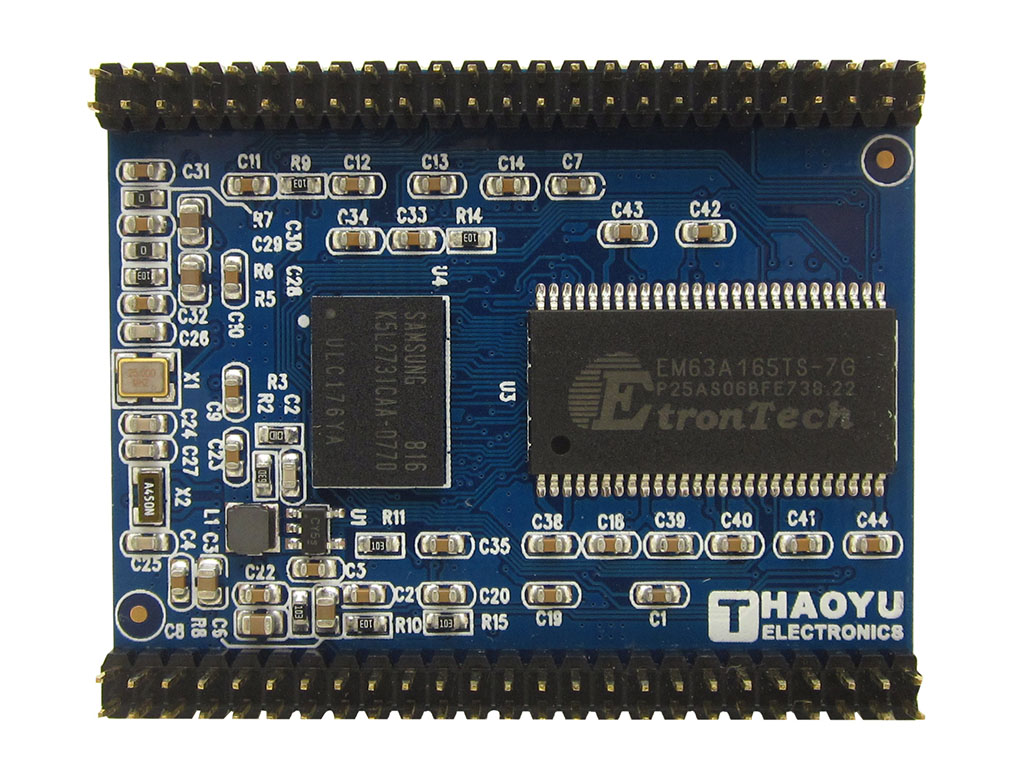

5. 32MB SDRAM
6. 4MB SRAM + 8MB NOR
7. 32.768 kHz crystal

Package list

CM-STM32F4XXIG x 1

Documents

• CM-STM32F4XXIG Schematic
• Software and Example Code CDROM
