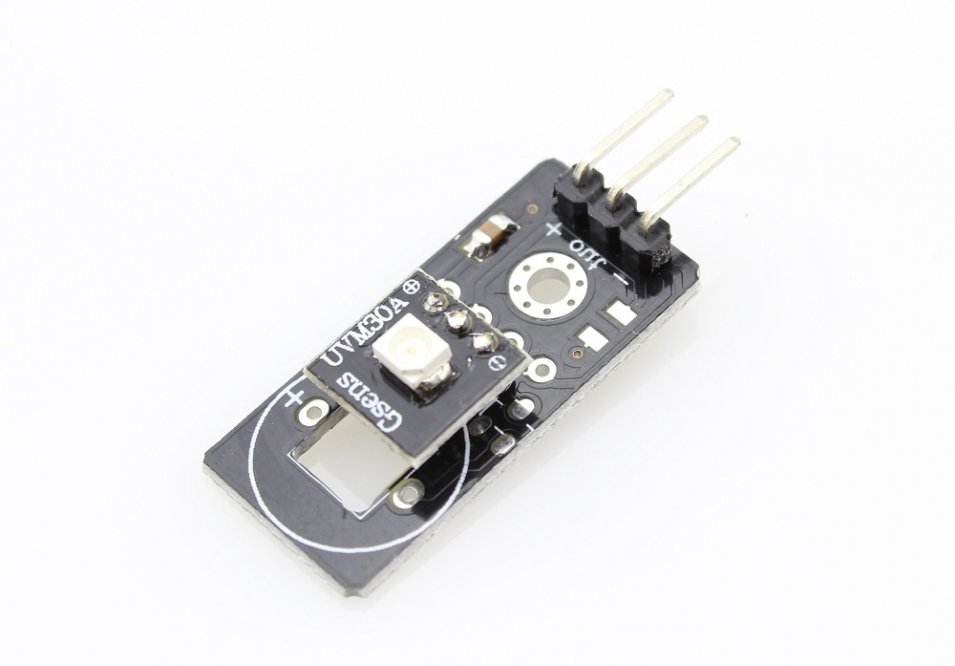

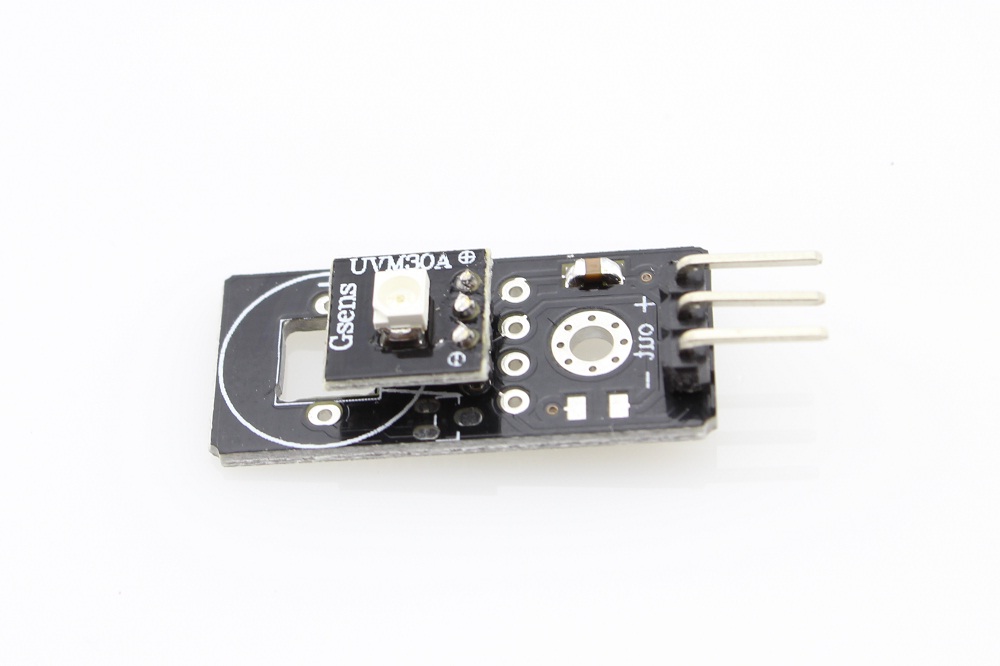

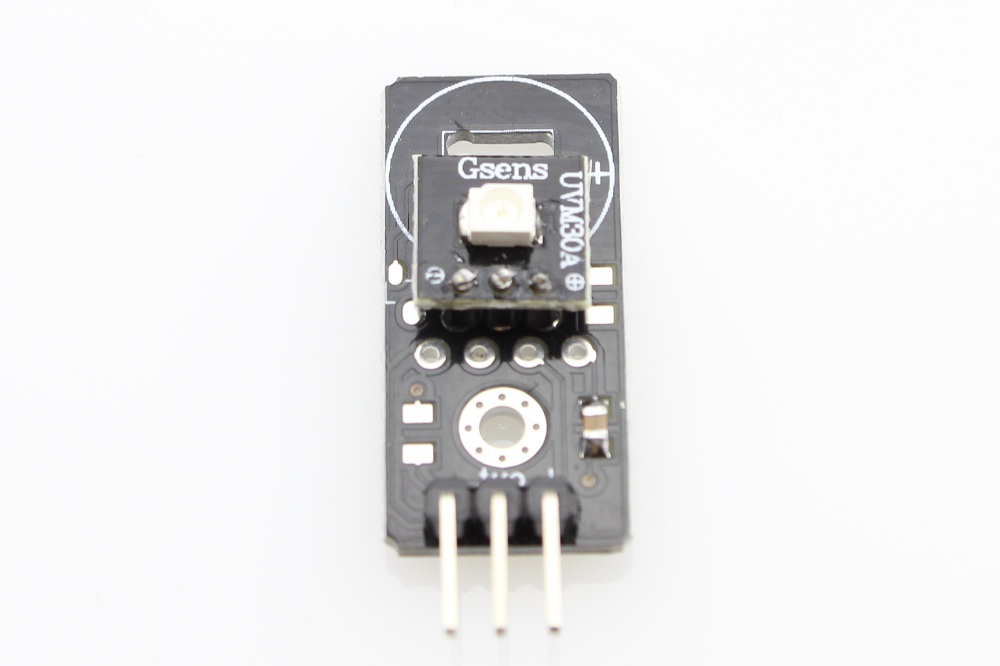

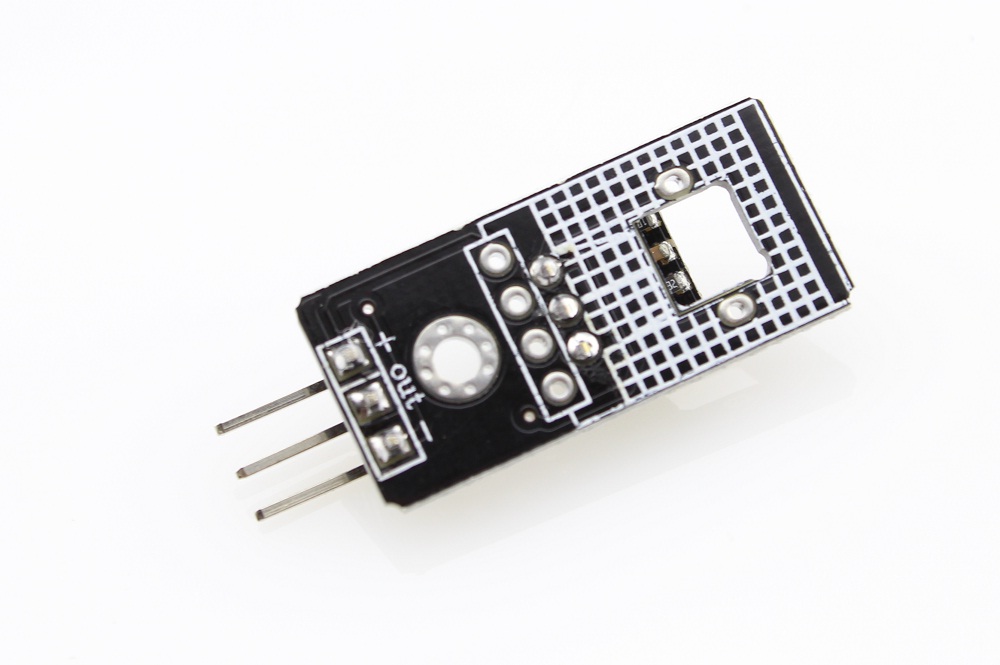

Ultraviolet rays UV Sensor Module - UVM30A

Description

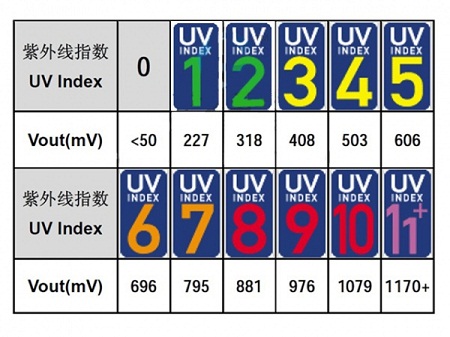

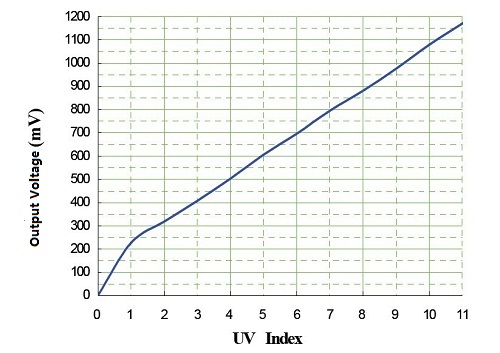

The UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation. This form of electromagnetic radiation has shorter wavelengths than visible radiation. This module is based on the sensor UVM-30A, which has a wide spectral range of 200nm-370nm. The module outputs electrical signal which varies with the UV intensity, which gives your suggestion if it is a good idea to beach today.

Specification

• Working voltage: DC 3~5V

• Curent: 0.06mA(Standard)/0.1mA(Max)

• Response wavelength: 200~370nm

• Working temperature: -20~85'C
